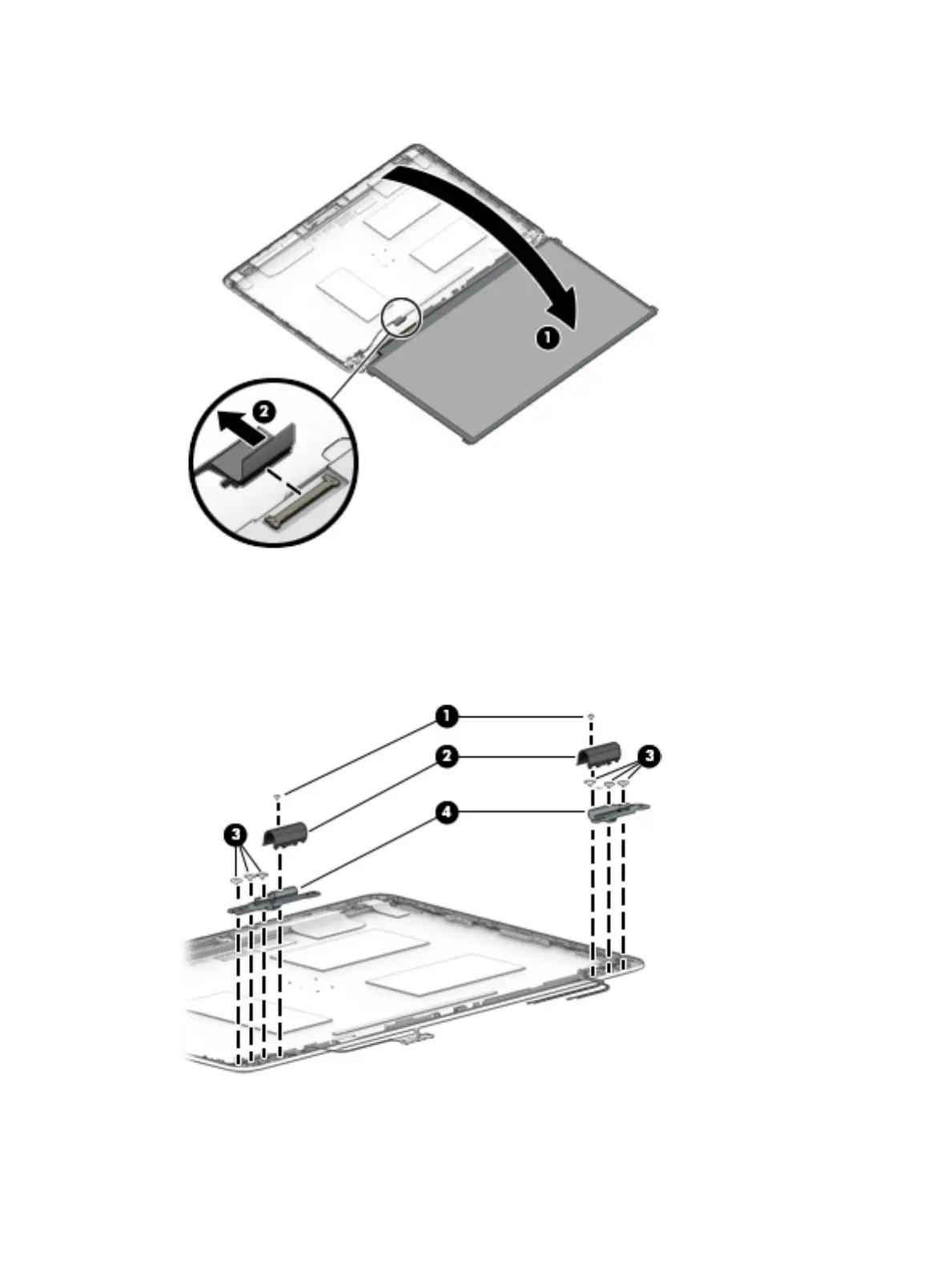

10. Remove the display panel from the enclosure.
11. If it is necessary to replace the display covers or hinges, remove the Phillips M2.0×3.0 screws (1) that
secure the hinge covers to the display enclosure, and then remove the hinge covers (2).
12. Remove the 6 Phillips M2.0x2.0 screws that secure the hinges to the display enclosure (3), and then
remove the display hinges from the display enclosure (4).
Display hinge covers and hinges are available in the Hinge Kit using spare part number 821187-001.
74 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
