g. Fan (see Fan on page 74)
h. Heat sink (see
Heat sink on page 76)
i. Modem module (see
Modem module on page 92)

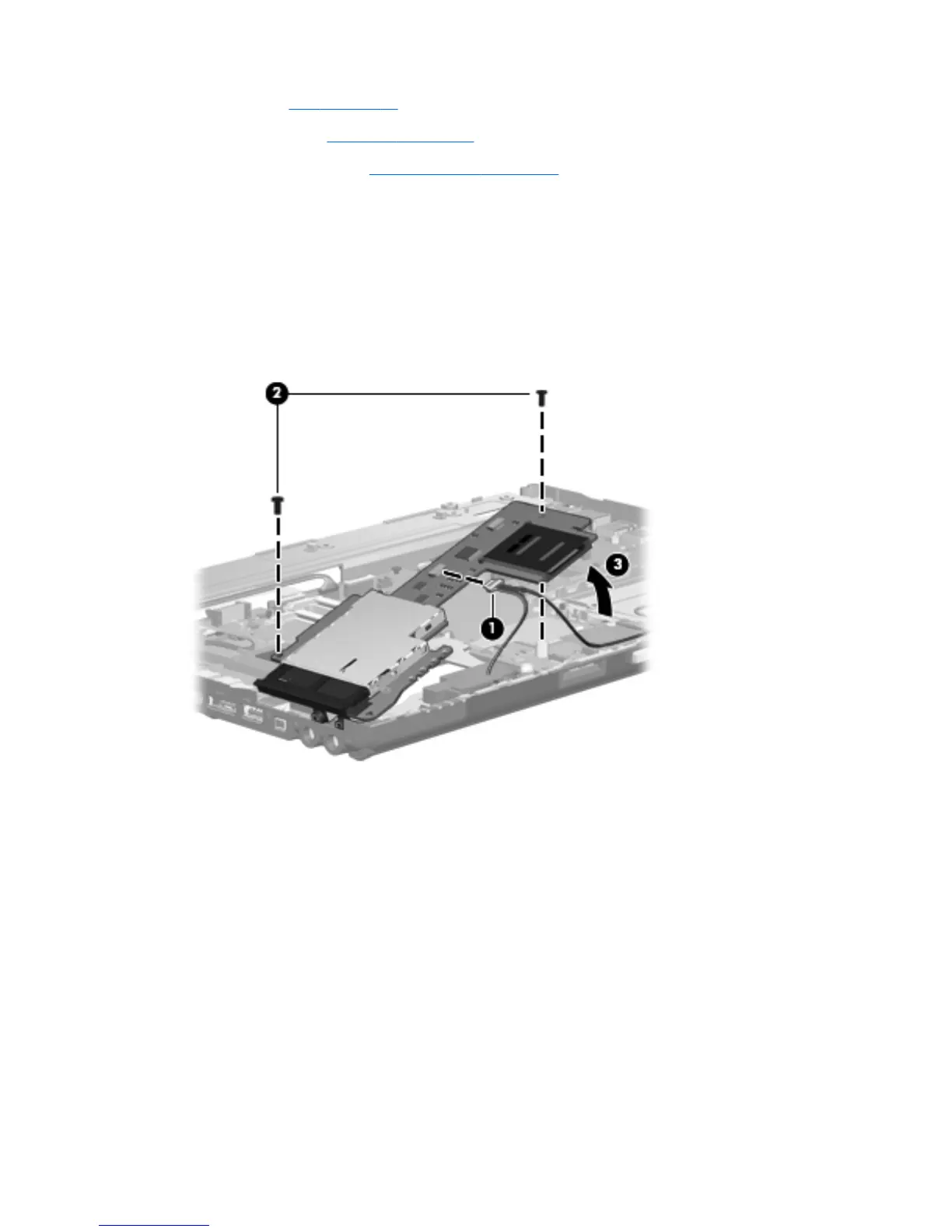

Remove the ExpressCard/audio assembly:
1. Position the computer right-side up, with the front toward you.
2. Disconnect the speaker cable from the assembly (1).
3. Remove the two Torx T8M2.5×8.0 screws (2) that secure the assembly to the base enclosure.
4. Lift the right side of the assembly (3) until the audio connectors disengage from the openings in
the base enclosure.
5. Remove the assembly from the base enclosure.
Reverse this procedure to install the ExpressCard/audio assembly.
94 Chapter 4 Removal and replacement procedures
