5. Remove the WWAN module (3) by pulling the module away from the slot at an angle.
NOTE: WWAN modules are designed with a notch (4) to prevent incorrect insertion.

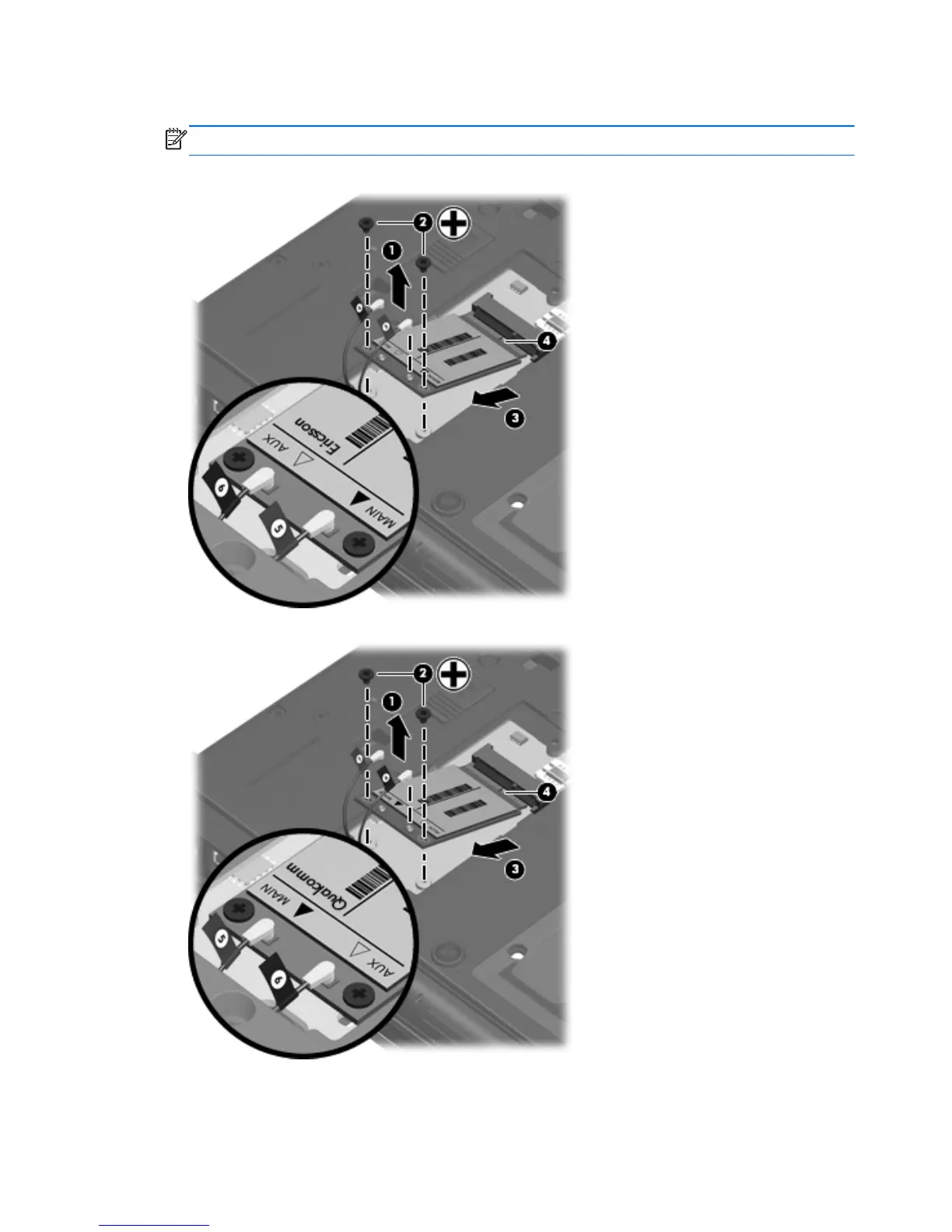

Figure 4-1 Ericsson module antenna locations
Figure 4-2 Qualcomm module antenna locations
Reverse this procedure to install the WWAN module.
