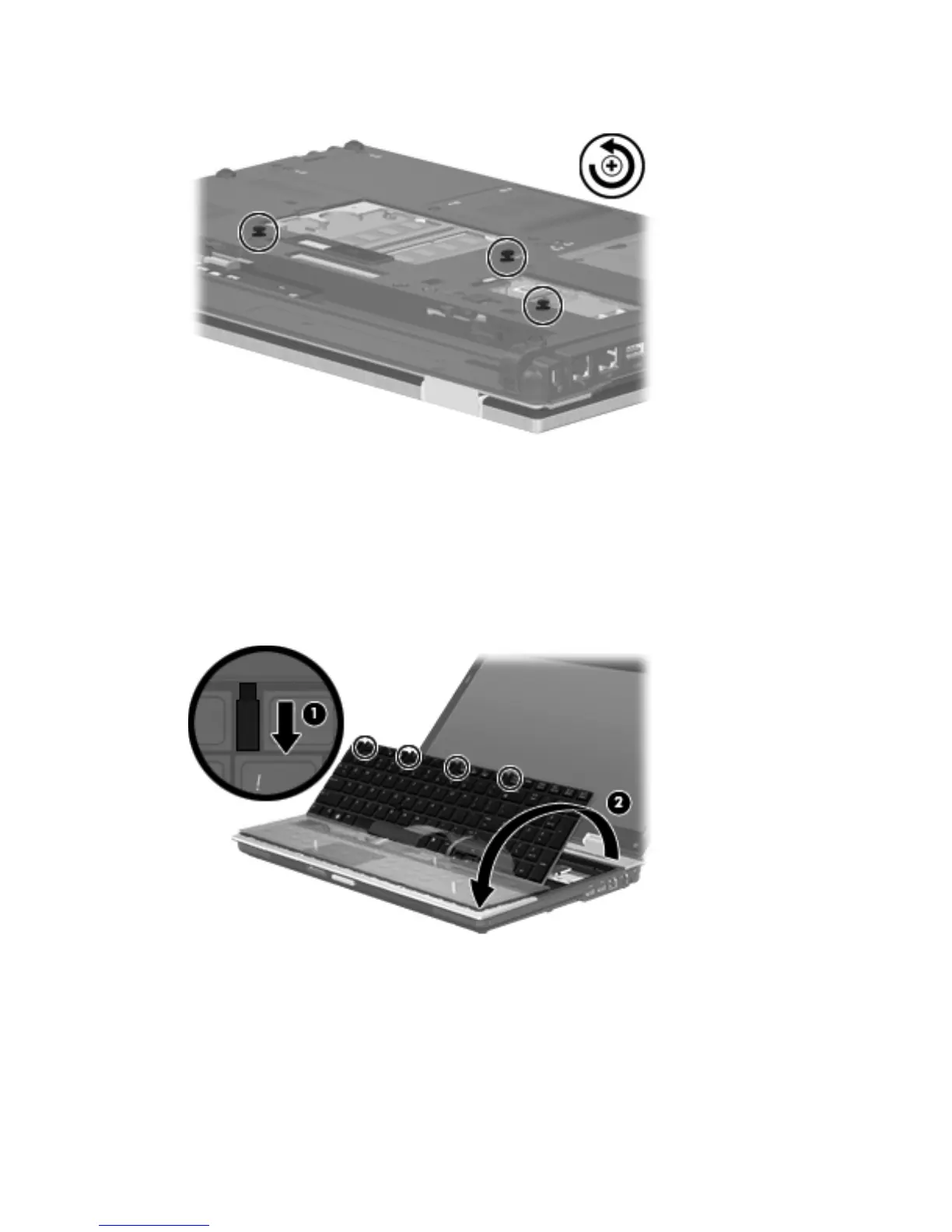

2. Loosen the three Phillips PM2.5×12.0 captive screws that secure the keyboard to the computer.
3. Turn the computer right-side up, with the front toward you.
4. Open the computer as far as possible.
5. Slide the four keyboard retention tabs (1) toward you. The tabs are located between the esc and
f1 keys, between the f4 and f5 keys, between the f8 and f9 keys, and between the f12 and scroll
keys.
6. Lift the rear edge of the keyboard, and then rotate the keyboard forward until it rests upside-
down on top of the TouchPad (2).
7. Release the zero insertion force (ZIF) connector to which the keyboard cable is attached (1), and
then disconnect the keyboard cable from the system board.
66 Chapter 4 Removal and replacement procedures
