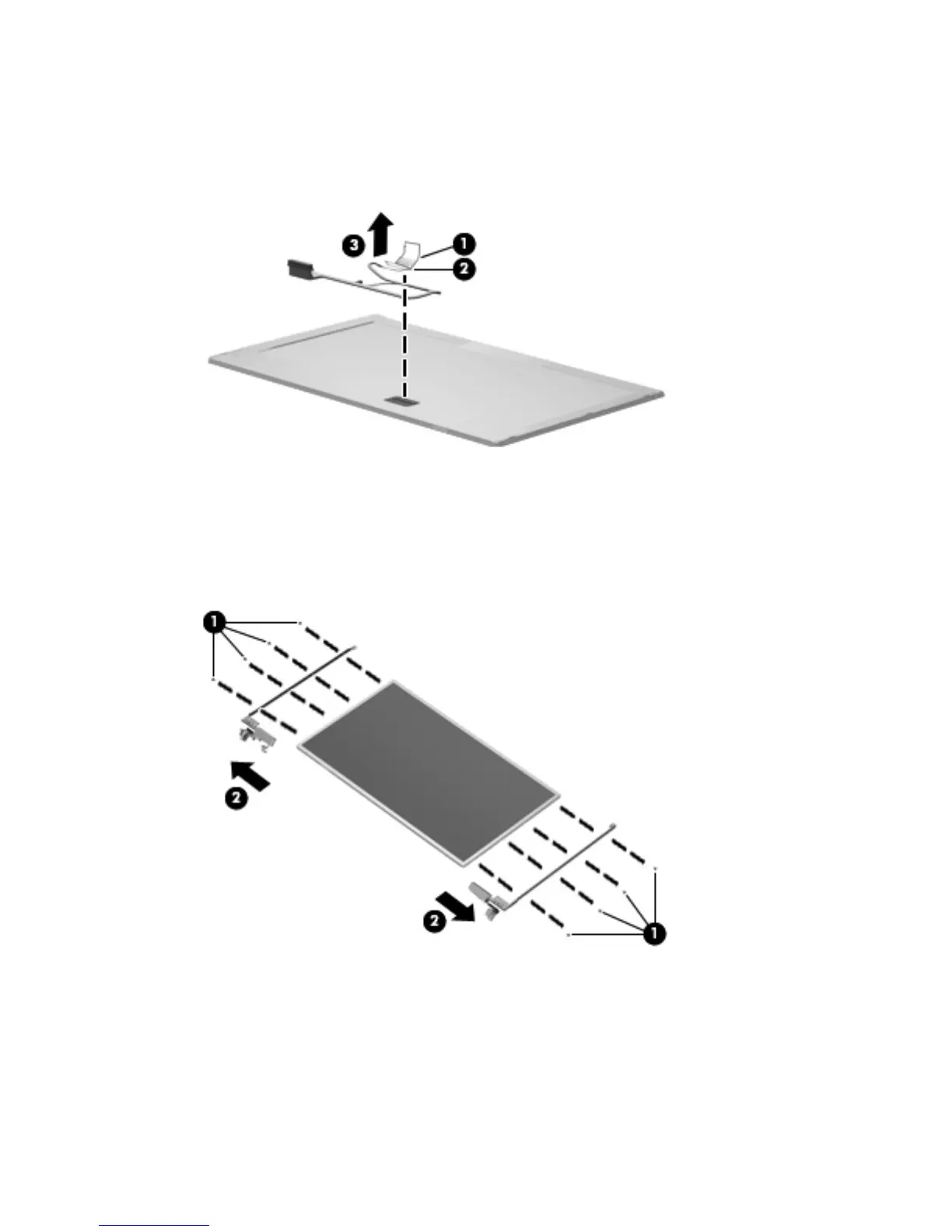

19. If it is necessary to remove the display panel cable, remove the tape that secures the connector
to the display panel (1), slide up and back the vertical bracket (2) that secures the cable to the
display, and then lift the cable away from the display panel (3). The display panel cable is in the
Display Panel Cable Kit, spare part number 595741-001 for HD displays and 615116-001 for
DreamColor displays.
20. If it is necessary to replace the display hinges, remove the four Phillips PM2.5×3.0 screws (1)
that secure each display hinge to the display panel.
21. Remove the display hinges (2). The left and right display hinges are available using spare part
number 595742-001 for models that do not use DreamColor displays, and 595743-001 for
models that use DreamColor displays.
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures 87
