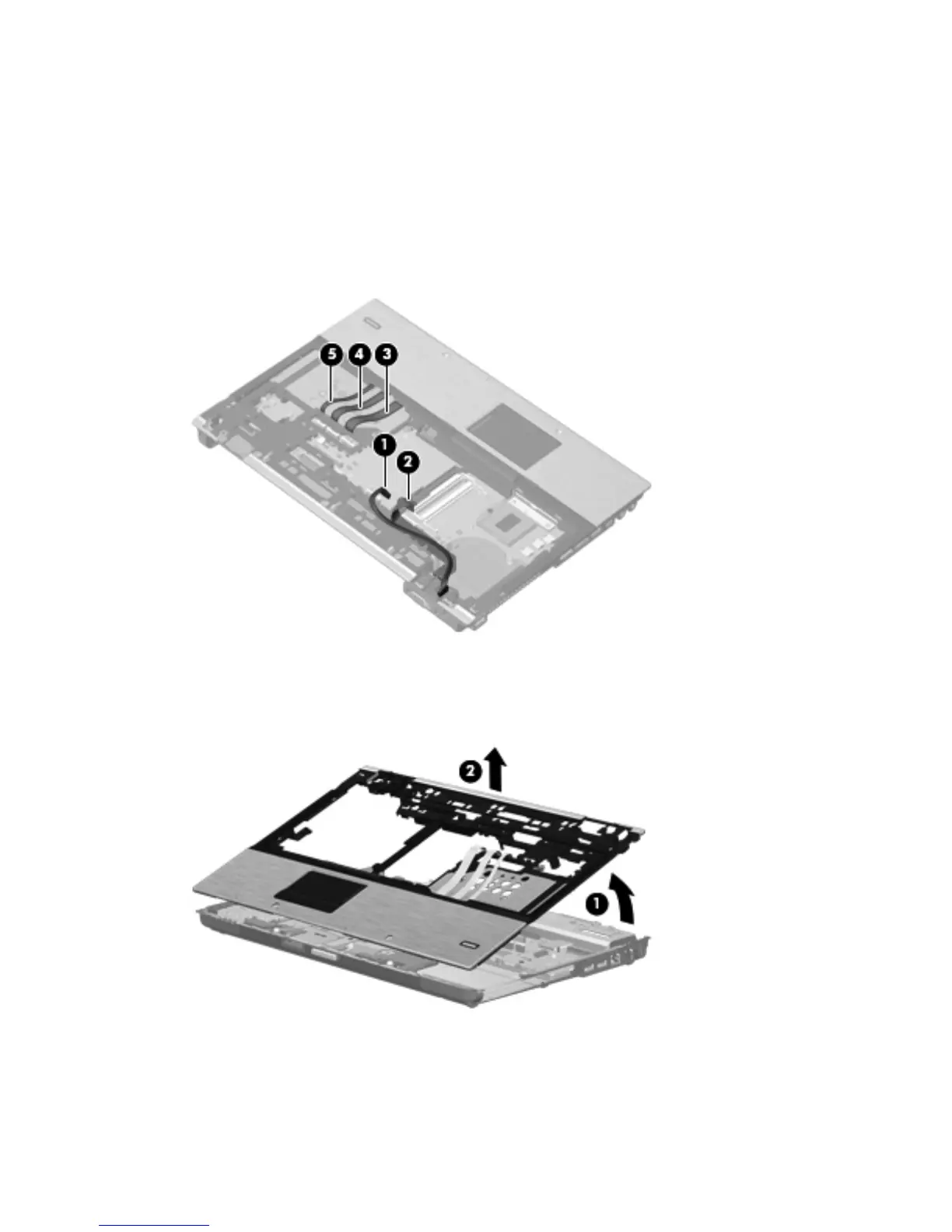

10. Disconnect the following cables from the system board:
●
(1) Black VGA cable
●
(2) Gray VGA cable
●
(3) Fingerprint reader cable
●
(4) TouchPad cable
●
(5) Card reader cable
11. Lift the rear edge of the top cover (1), and then swing it up and forward slightly.
12. Lift the top cover up (2) to allow access to the audio pass-thru cable located on the bottom of the
top cover.
90 Chapter 4 Removal and replacement procedures
