HP EliteBook 8560p - Page 4

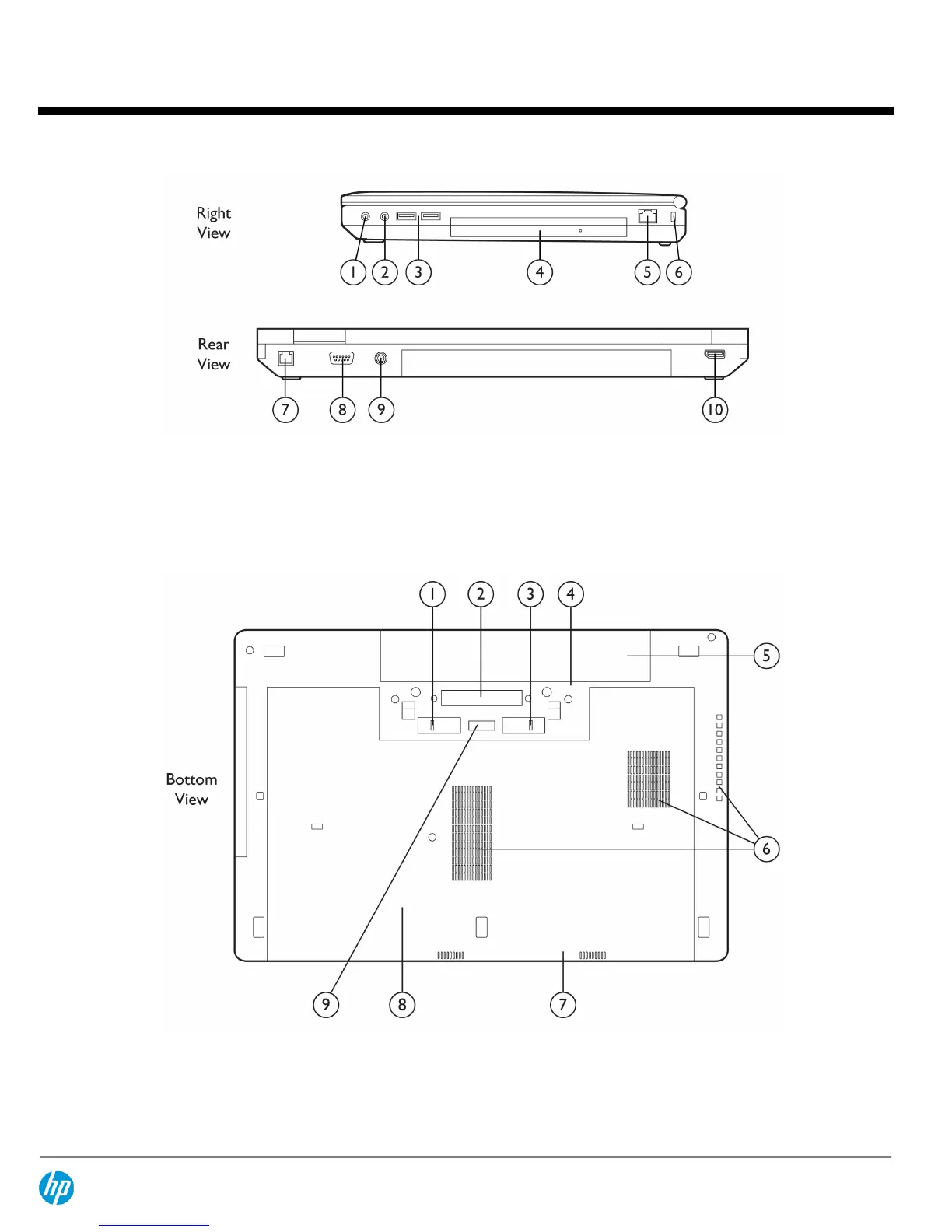

1. Stereo headphone/line out 6. Security lock slot
2. Stereo microphone/line in 7. RJ-11/modem port
3. (2) USB 3.0 ports 8. Serial port
4. Upgrade Bay (optical drive, second hard drive, or weight saver) 9. Power connector
5. RJ-45/Ethernet port 10. DisplayPort
1. Battery release latch 6. Vents
2. Docking connector 7. Bluetooth module compartment
3. Bottom cover release latch 8. Hard drive, memory, and wireless compartments
4. SIM slot for WWAN (select models) under bottom cover
5. Battery bay 9. Bluetooth module compartment
QuickSpecs
HP EliteBook 8460p Notebook PC
HP EliteBook 8560p Notebook PC
Overview
DA - 13947 North America — Version 20 — August 3, 2012 Page 4
