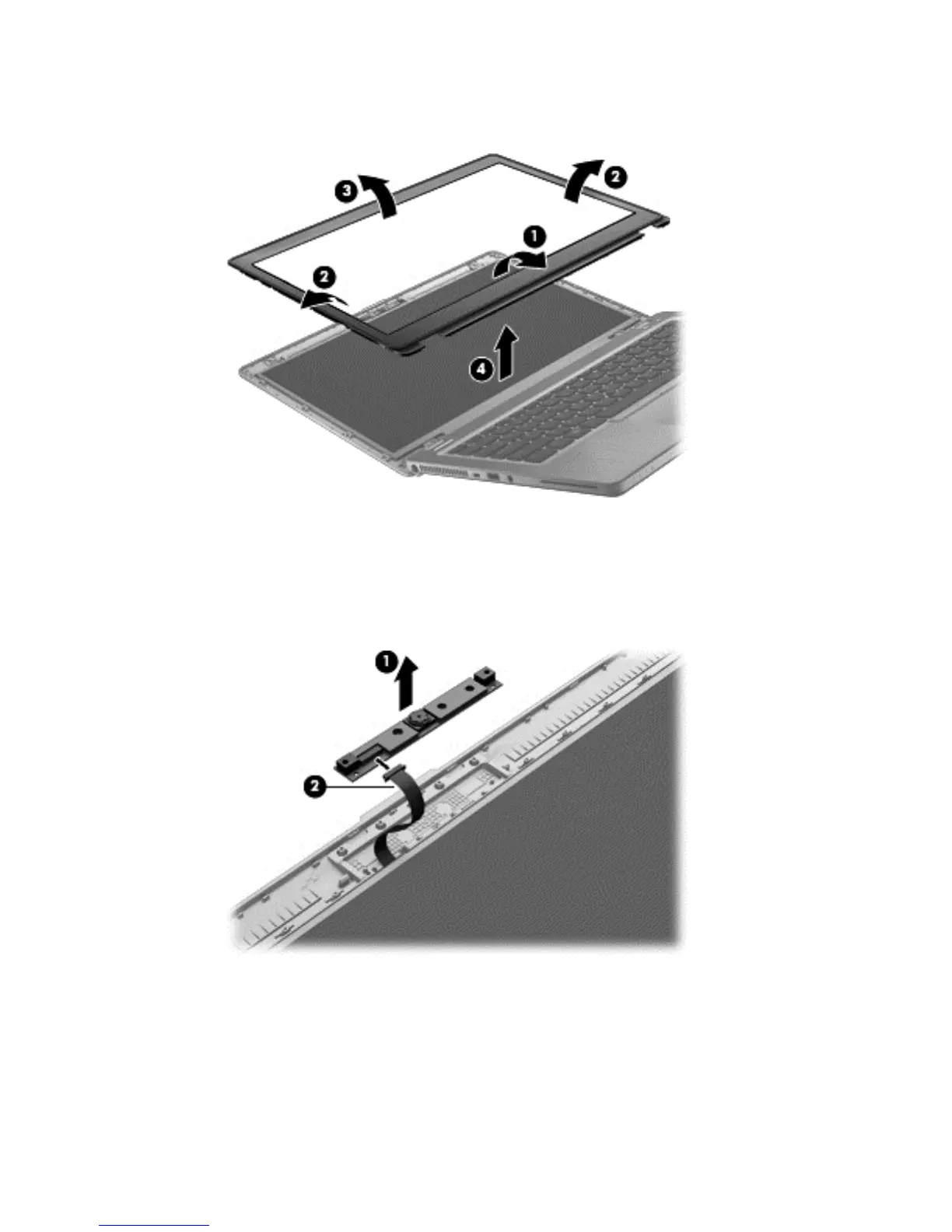

b. Remove the display bezel (4). The display bezel is available using spare part number
702860-001 on models with a webcam and 702861-001 on models without a webcam.
4. If it is necessary to replace the webcam/microphone module:
a. Detach the webcam/microphone module (1) from the display enclosure. (The webcam/
microphone module is attached to the display enclosure with double-sided tape.)
b. Disconnect the cable (2) from the webcam/microphone module.
c. Remove webcam/microphone module. The webcam module is available using spare part
number 702854-001. The microphone module is available using spare part number
702873-001.
44 Chapter 4 Removal and replacement procedures
