HP EliteBook 9470m

5. If it is necessary to replace the display panel:

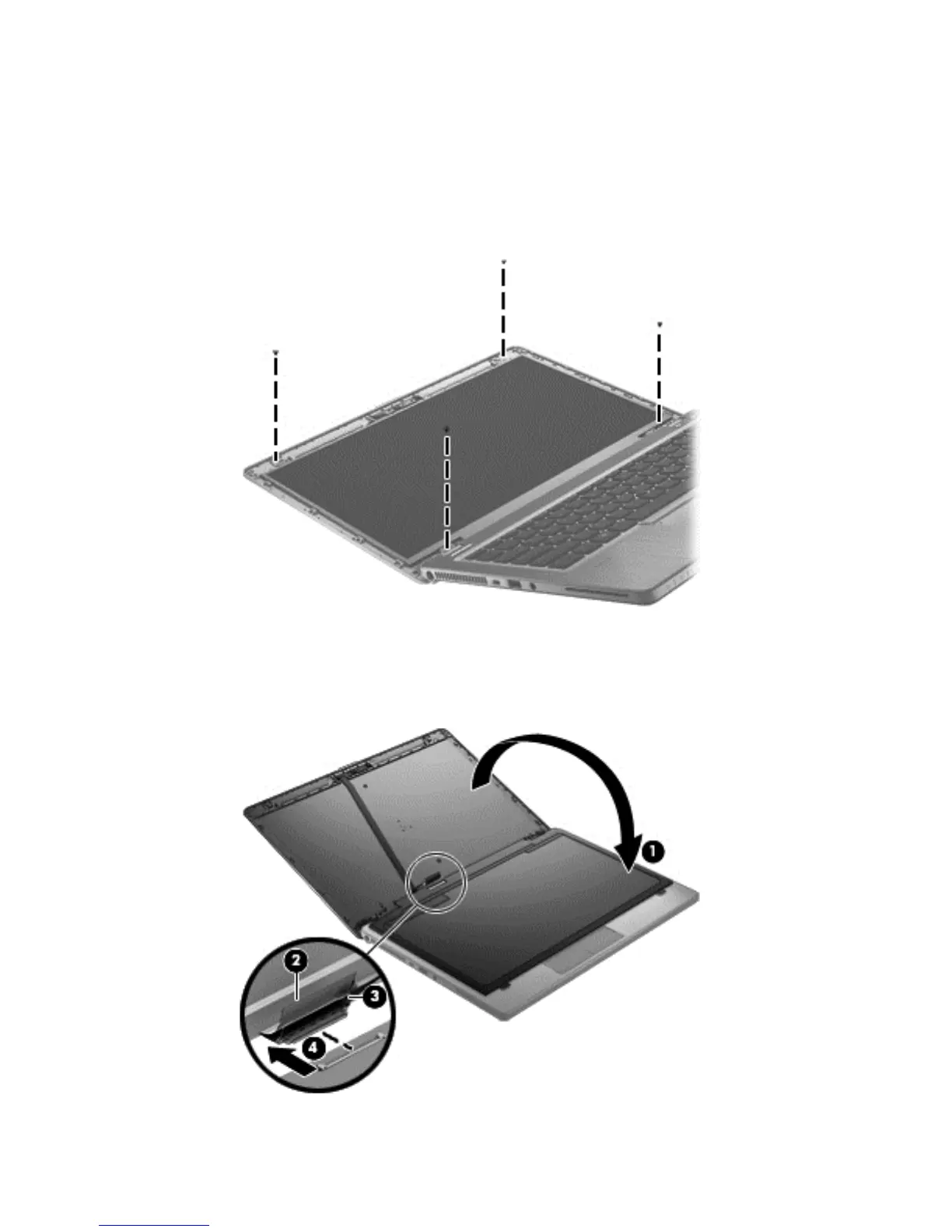

a. Remove the four Phillips PM2.0×3.0 screws that secure the display panel to the
display enclosure.
●
702871-001 — 35.6-cm (14.0-in), LED, HD, AntiGlare display panel
●
708771-001 — 35.6-cm (14.0-in), LED, HD+, AntiGlare display panel
b. Rotate the top of the display panel downward (1).
c. Lift the tape that secure the display cable connector on the panel (2), and then disconnect the
cable (3) from the connector (4).
Component replacement procedures
45
