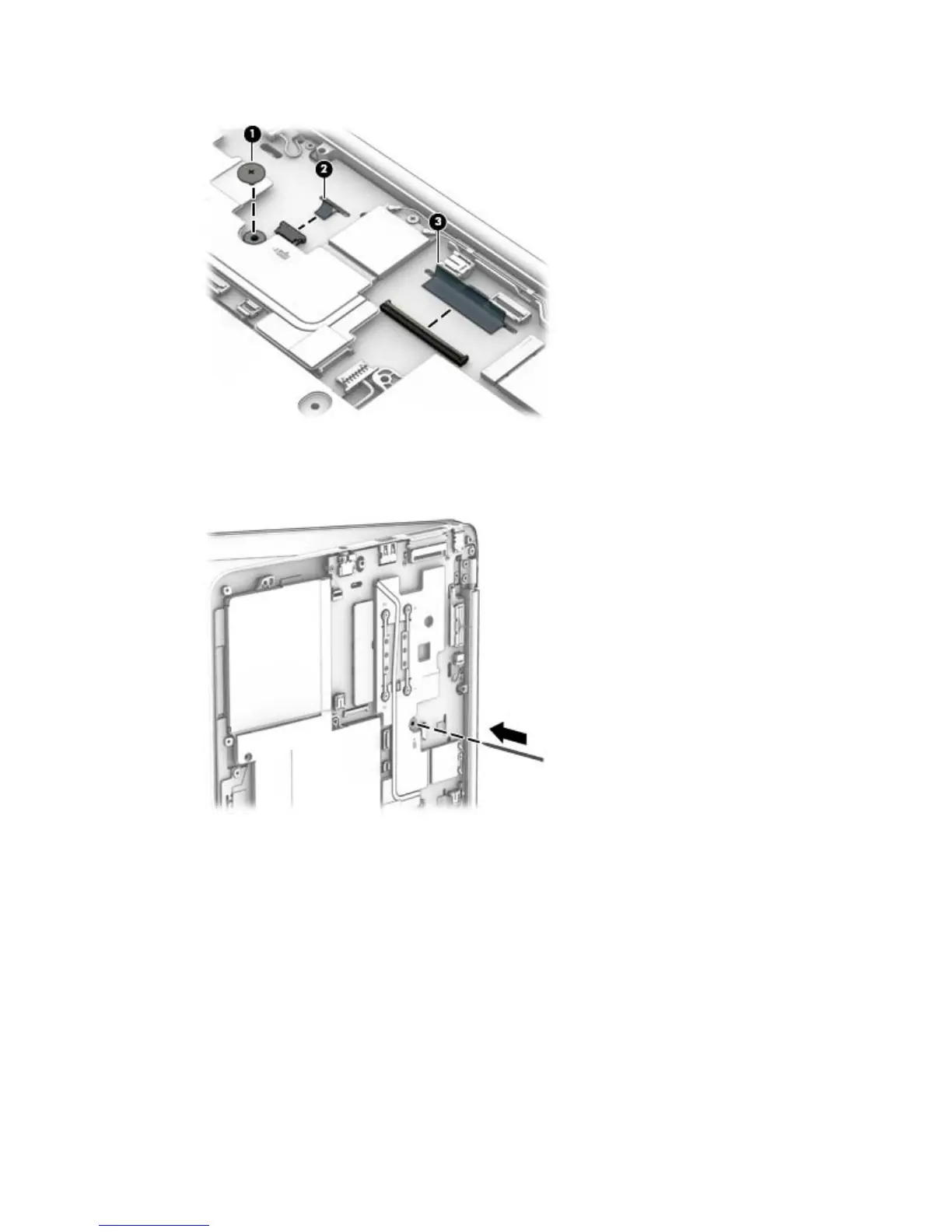

3. Disconnect the main keyboard cable from the system board (3).
4. Position the computer on its side and open.
5. Insert a screwdriver or similar thin tool into the screw boss of the screw removed in the previous step,
and then press on the back of the keyboard until it disengages from the computer.
Component replacement procedures 39
