Speaker assembly
Description Spare part number
Speaker assembly (includes cable) 800583-001
Before removing the speaker assembly, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see
Bottom cover on page 32).
5. Remove the battery (see
Battery on page 56).
6. Remove the system board (see
System board on page 60).
Remove the speaker assembly:

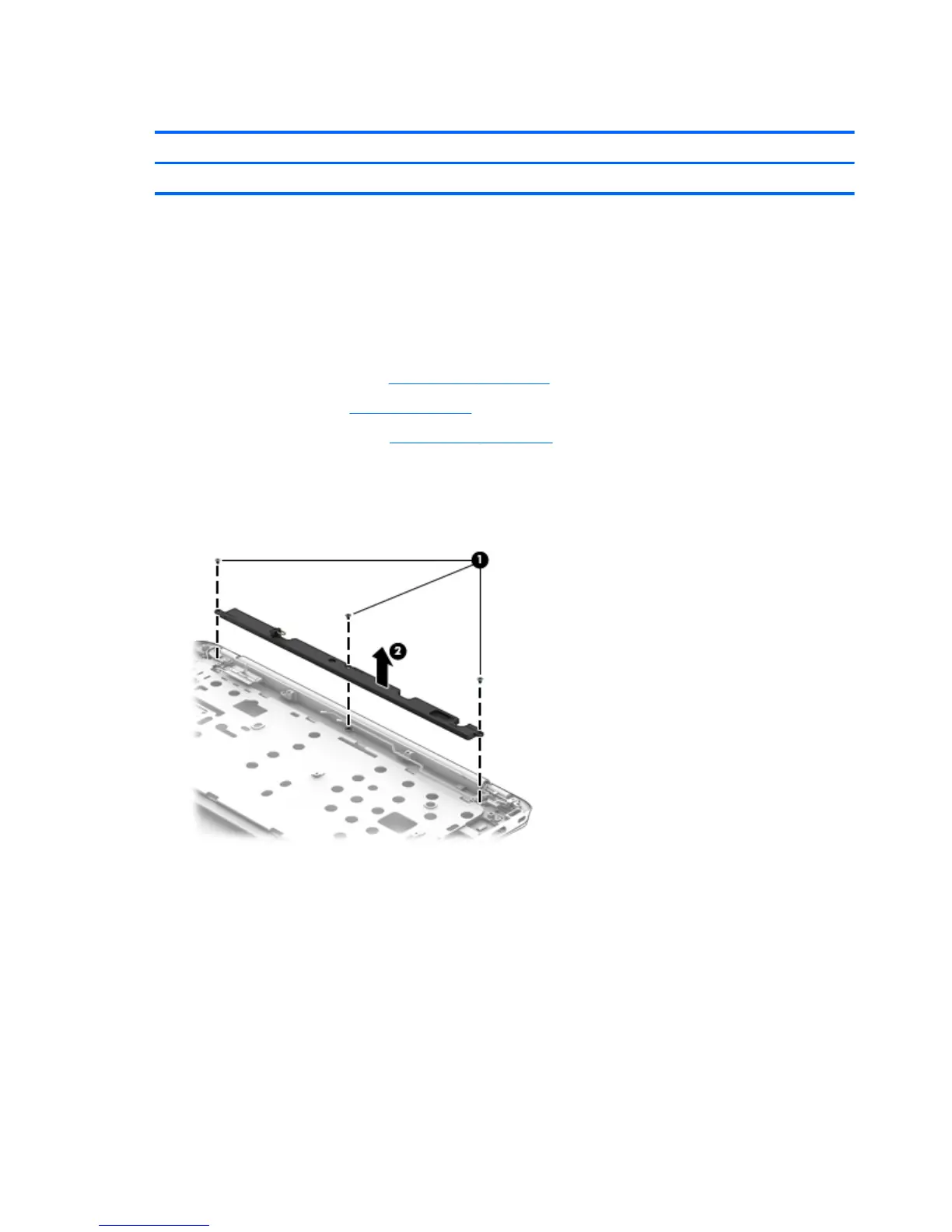

1. Remove the three Phillips PM2.0×2.4 screws (1) that secure the speaker to the computer.
2. Remove the speaker (2) from the computer.
Reverse this procedure to install the speaker.
64 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
