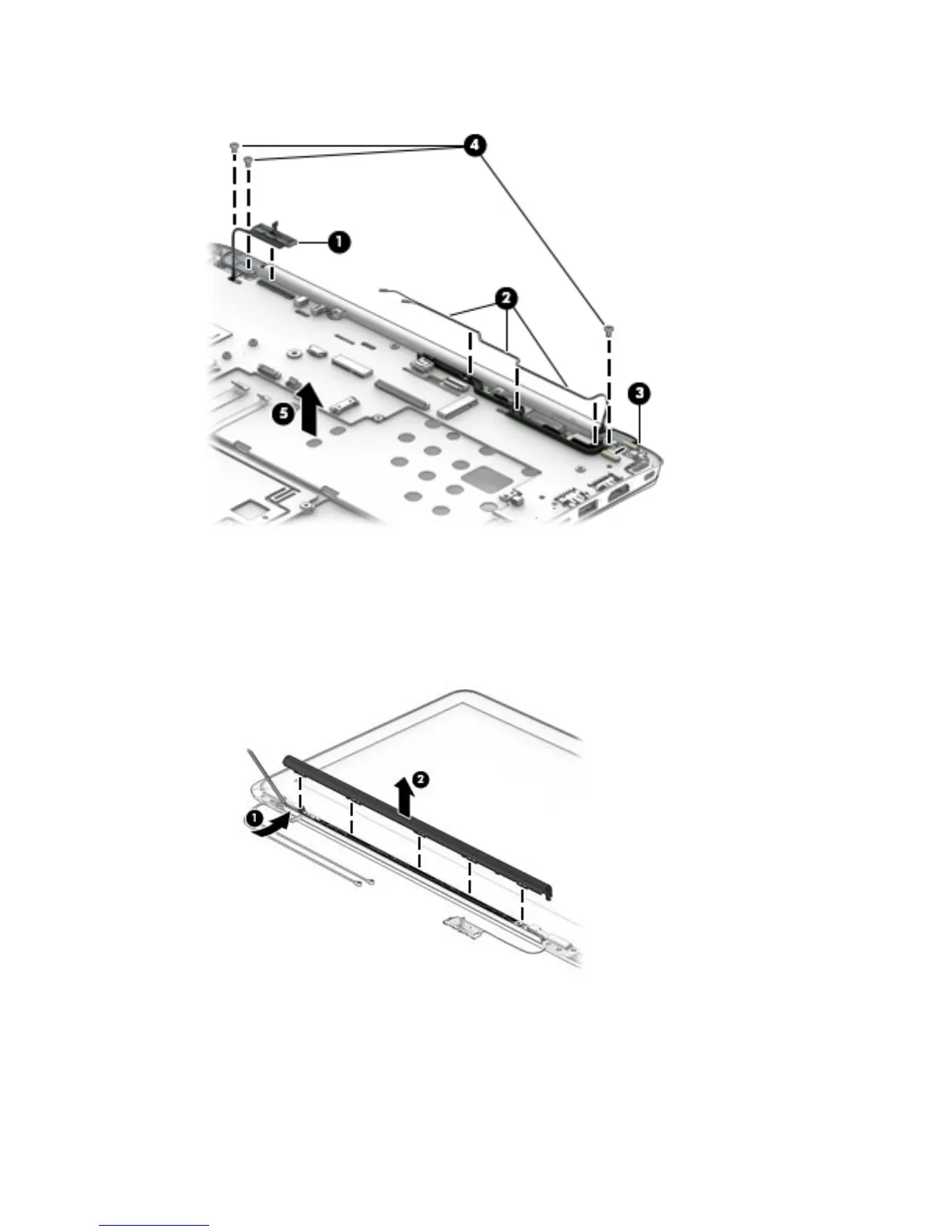

9. Remove the computer from the display assembly (5).
10. If it is necessary to replace the display hinges:
a. Run a non-marking tool along the edge of the hinge cover to disengage the cover from the display
(1).
b. Remove the hinge cover from the display (2).
The display hinge cover is available using spare part number 790045-001.
c. Remove the two Phillips PM2.5×5.2 screws (1) per hinge that secure the hinges to the display.
d. Remove the acetate tape and antenna cable from the left hinge (2).
Component replacement procedures 47
