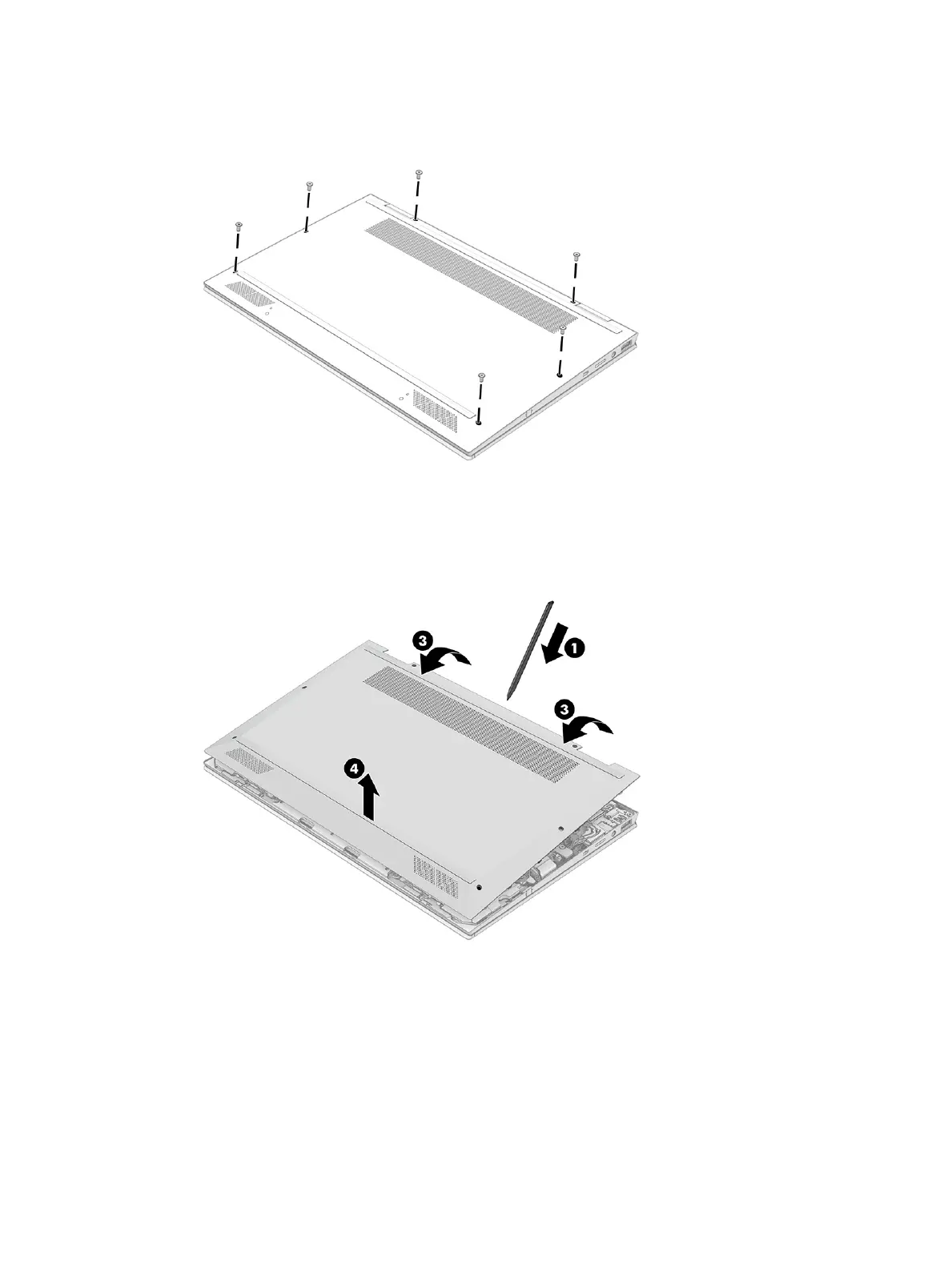

1. Remove the six Torx T6M2.0 × 5.0 screws that secure the bottom cover to the computer.
2. Use a nonmarking, nonconductive tool (1) to release the rear edge of the bottom cover (2) from the
computer.
3. Remove the bottom cover from the computer (3).
To replace the bottom cover, reverse the removal procedures.
Battery
To remove the battery, use this procedure and illustration.
36 Chapter 5 Removal and replacement procedures for authorized service provider parts
