Power switch assembly
1. Prepare the computer for disassembly (Preparation for disassembly on page 22).
2. Remove the access panel (
Access panel on page 23).
3. Remove the front bezel (
Front bezel on page 24).
4. Rotate the drive cage to its upright position.

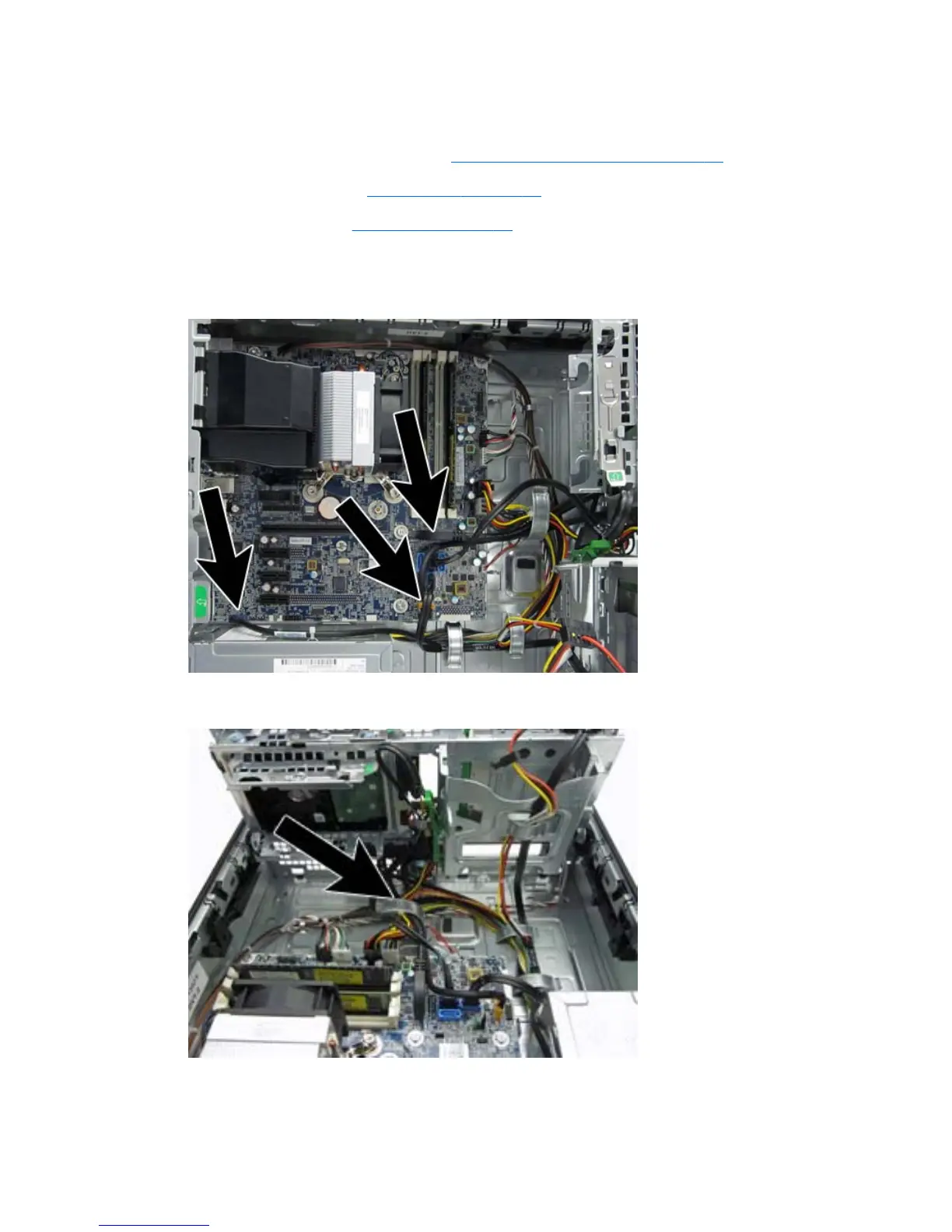

5. Disconnect the cable from the system board connector labeled PB/LED.
6. Remove the cable from the cable clip under the drive cage.
7. From the inside of the chassis, press down on the tab on the top of the power switch (1) to
disengage the power switch from the chassis.
60 Chapter 5 Removal and replacement procedures: Small Form Factor
