HP EliteDesk 705 G2

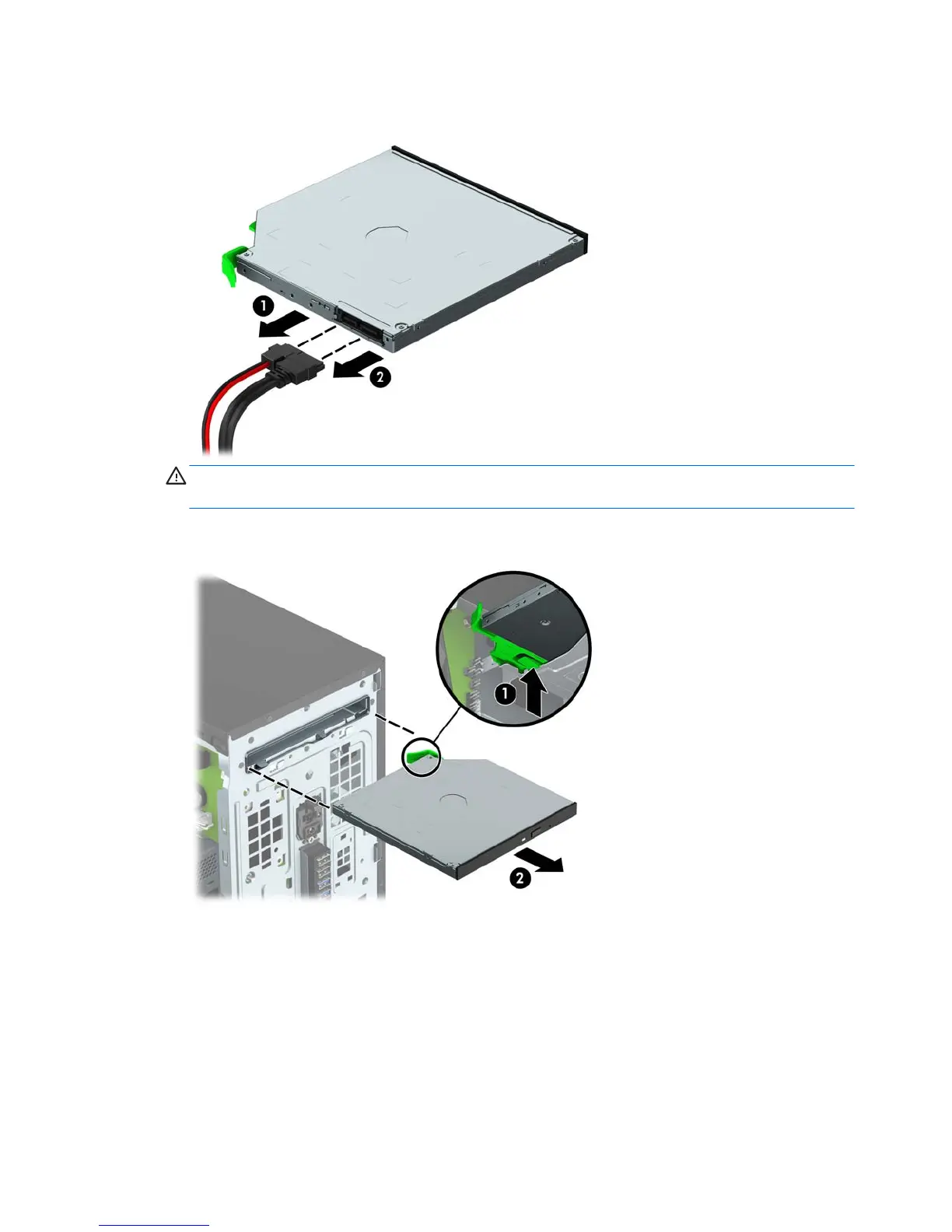

5. Disconnect the power cable (1) and data cable (2) from the rear of the optical drive.
CAUTION: When removing the cables, pull the tab or connector instead of the cable itself to avoid
damaging the cable.
6. Press upward on the green release latch on the underside of the drive (1), and then slide the drive out of
the drive bay (2).
34 Chapter 4 Removal and replacement procedures – Microtower (MT) chassis
