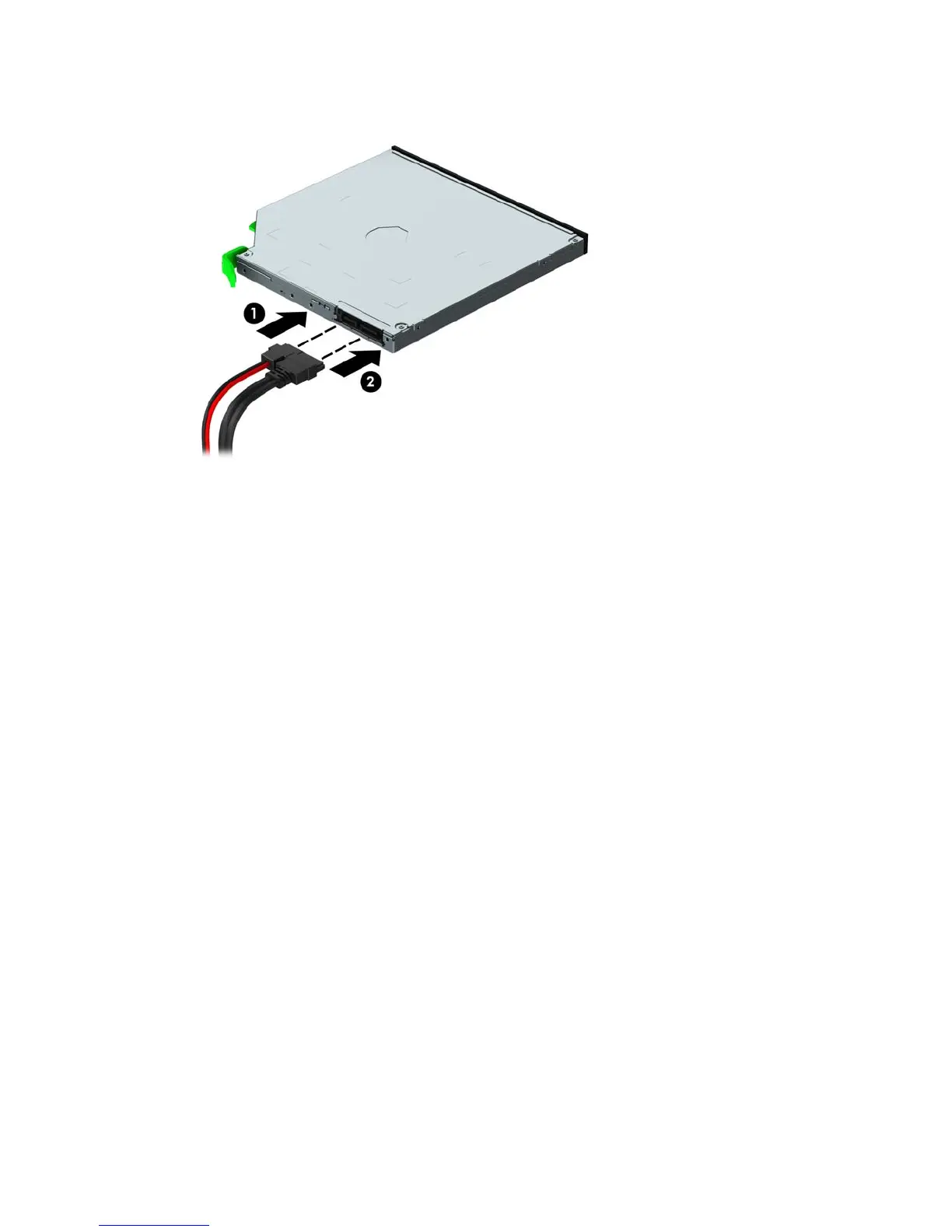

7. Connect the power cable (1) and data cable (2) to the rear of the optical drive.
8. If installing a new drive, connect the opposite end of the data cable to one of the light blue SATA
connectors (labeled SATA1 or SATA2) on the system board.
9. Replace the front bezel if it was removed.
10. Replace the computer access panel.
11. Reconnect the power cord and any external devices, and then turn on the computer.
12. Lock any security devices that were disengaged when the access panel was removed.
36 Chapter 4 Removal and replacement procedures – Microtower (MT) chassis

HP EliteDesk 705 G2 Specifications

General

Processor family	AMD
Built-in processor	No
Audio system	Realtek ALC221
Optical drive type	DVD Super Multi
Motherboard chipset	AMD A58
Compatible processor series	AMD A
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	1.2
Memory slots type	DIMM
Number of memory slots	4
Maximum internal memory	32 GB
Storage drive sizes supported	2.5, 3.5 \
Supported storage drive types	HDD & SSD
PCI Express x1 slots	2
PCI Express x16 slots	1
HDMI ports quantity	0
PS/2 ports quantity	11
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
Chassis type	SFF
Cooling type	-
Product type	PC barebone
Product color	Black
Power supply	200 W
Power supply type	Internal power supply unit
Compatible operating systems	- Windows 10 Pro 64 bit, Windows 10 Home 64 bit, Windows 8.1 Pro 64 bit, Windows 8.1 64 bit, Windows 7 Professional 64 bit, Windows 7 Professional 32 bit, Windows 7 Professional 64 bit, Windows 7 Professional 32 bit - NeoKylin Linux 64 - FreeDOS 2.0
Sustainability certificates	ENERGY STAR
Certification	EPEAT Gold

Weight and Dimensions

Depth	380 mm
Width	338 mm
Height	100 mm
Weight	6600 g
