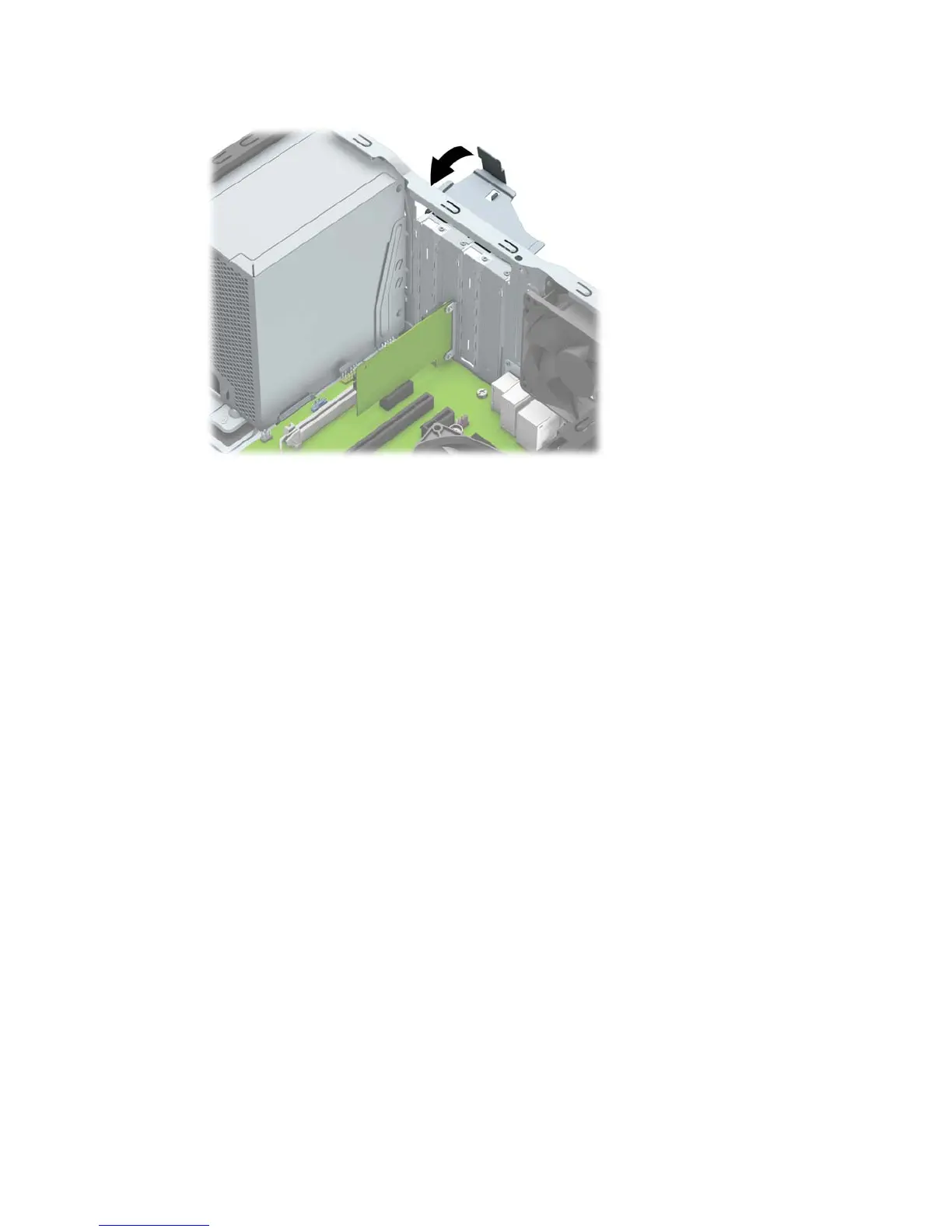

12. Rotate the slot cover retention latch back in place to secure the expansion card.
13. Connect external cables to the installed card, if needed. Connect internal cables to the system board, if
needed.
14. Replace the computer access panel.
15. Reconnect the power cord and any external devices, and then turn on the computer.
16. Lock any security devices that were disengaged when the computer access panel was removed.
17. Recongure the computer, if necessary.
Removing or installing an expansion card 17
