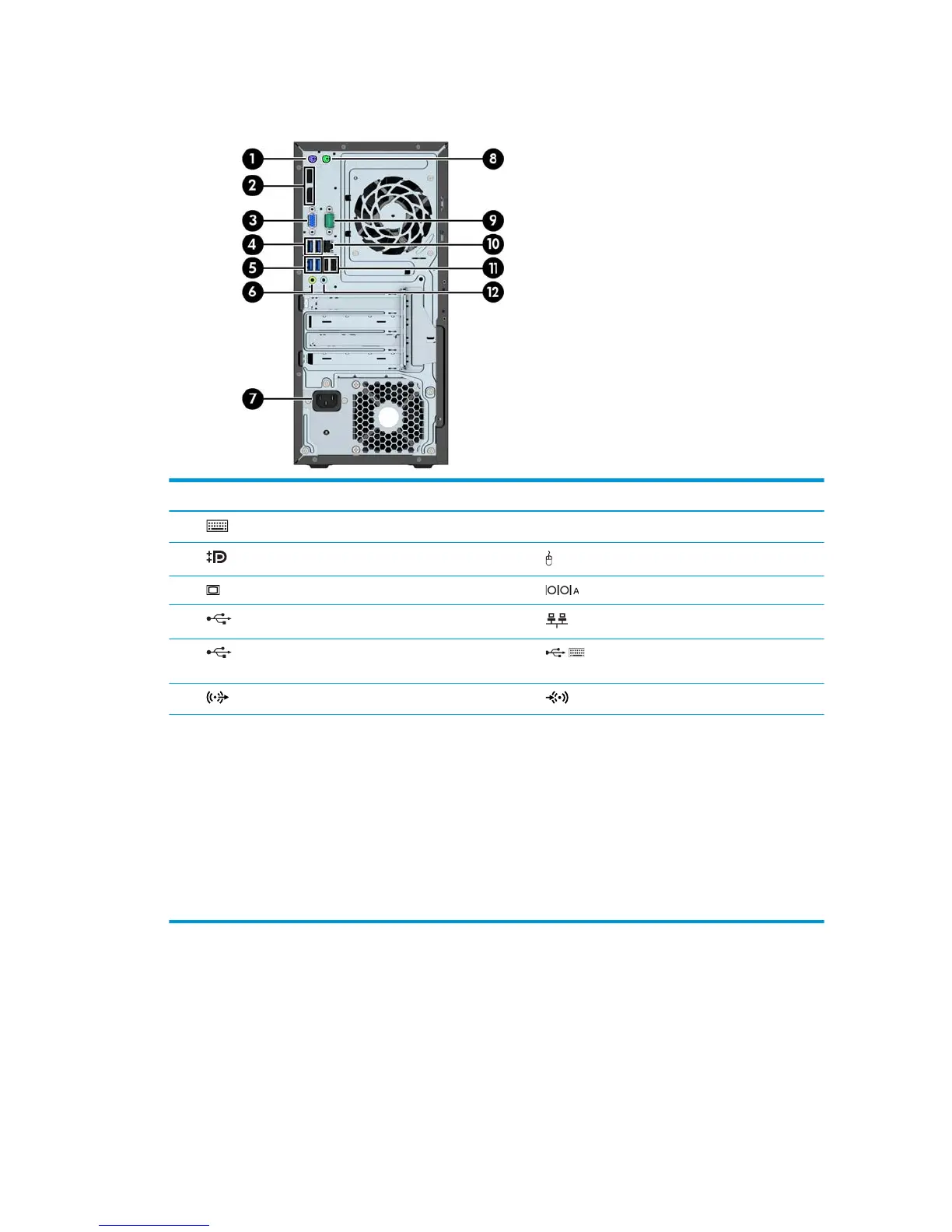

Rear panel components
Rear panel components
1 PS/2 keyboard connector (purple) 7 Power cord connector
2 DisplayPort monitor connectors 8 PS/2 mouse connector (green)
3 VGA monitor connector 9 Serial port
4 USB 3.1 ports (blue) 10 RJ-45 (network) jack
5 USB 3.1 ports (blue) 11 USB 2.0 ports (black) with keyboard
wakeup function
6 Audio-out jack for powered audio devices (green) 12 Audio-in jack (blue)
NOTE: An optional second serial port and an optional parallel port are available from HP.
If using a USB keyboard, HP recommends connecting the keyboard to one of the USB 2.0 ports with the wakeup feature. The
wakeup feature is also supported on the PS/2 connector if enabled in BIOS F10 Setup.
When a device is plugged into the microphone/headphone jack, a dialog box will pop up asking if you want to use the jack for a
microphone or a headphone. You can recongure the jack at any time by double-clicking the Audio Manager icon in the
Windows taskbar.
When a graphics card is installed in one of the system board slots, the video connectors on the graphics card and/or the
integrated graphics on the system board may be used. The specic graphics card installed and software conguration will
determine the behavior.
The system board graphics can be disabled by changing settings in BIOS F10 Setup.
