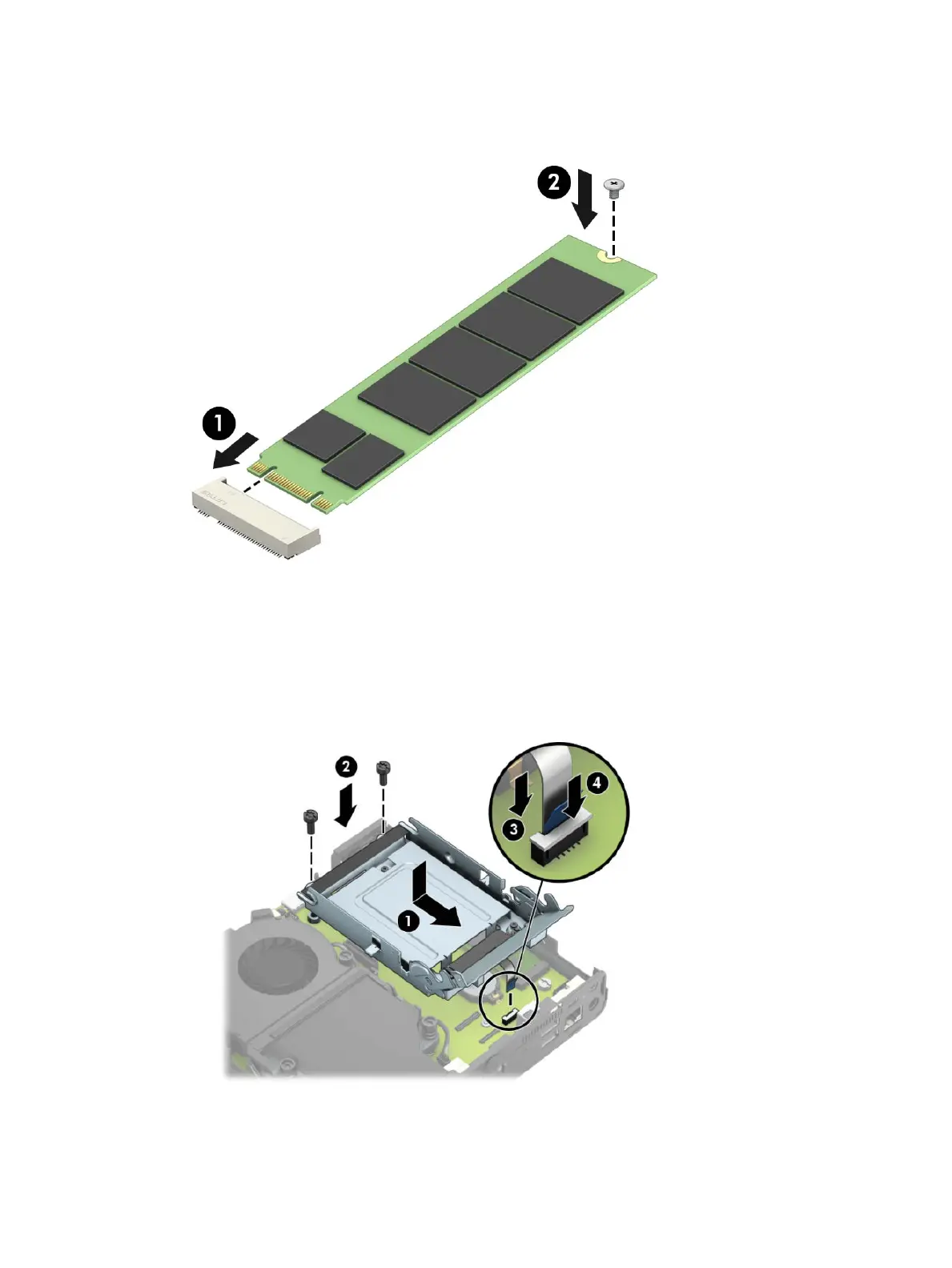

10. Slide the connector end of the SSD into the socket (1) on the system board, and then secure the SSD with
the screw (2).
11. Replace the hard drive cage or the graphics processor, depending on your model.
For models with a hard drive:
a. Place the hard drive cage down into the chassis, and then slide it forward (1). Install the two screws
(2) that secure the hard drive cage to the chassis, and then connect the hard drive cable (3) to the
system board. Secure the cable by attaching the hard drive cable clamp (4) to the system board
connector.
22 Chapter 3 Hardware upgrades
