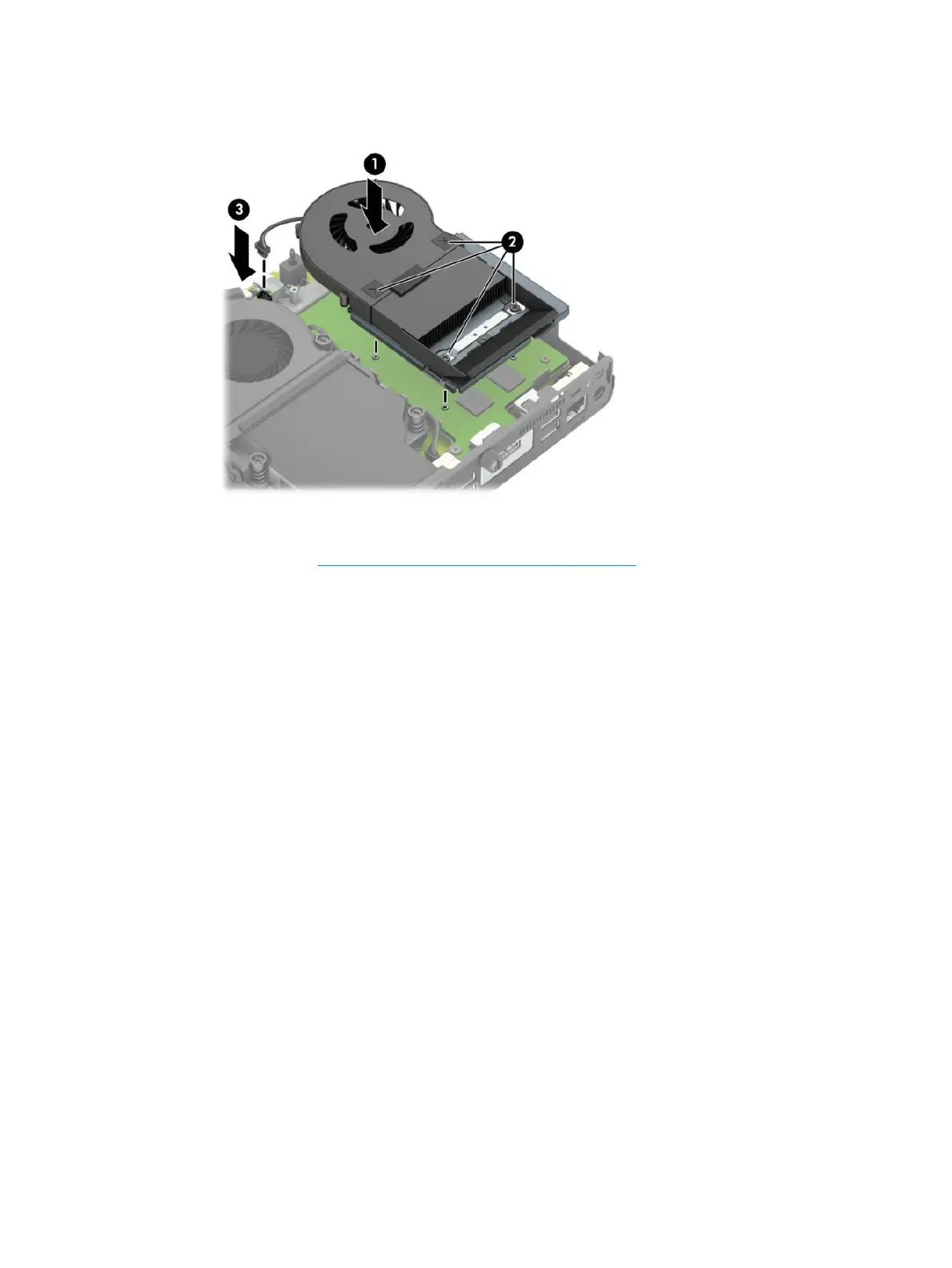

b. Place the fan assembly (1) on the graphics processor. Secure the fan assembly with the four screws
(2), and then connect the fan assembly cable (3) to the system board.
12. Replace the access panel.
For instructions, see Replacing the computer access panel on page 10.
13. If the computer was on a stand, replace the stand.
14. Reconnect external devices, plug in the power cord, and then turn on the computer.
15. Lock any security devices that were disengaged when the computer cover or access panel was removed.
24 Chapter 3 Hardware upgrades
