EL-MF877-00
Template Revision B
Page 3
PSG instructions for this template are available at EL-MF877-01

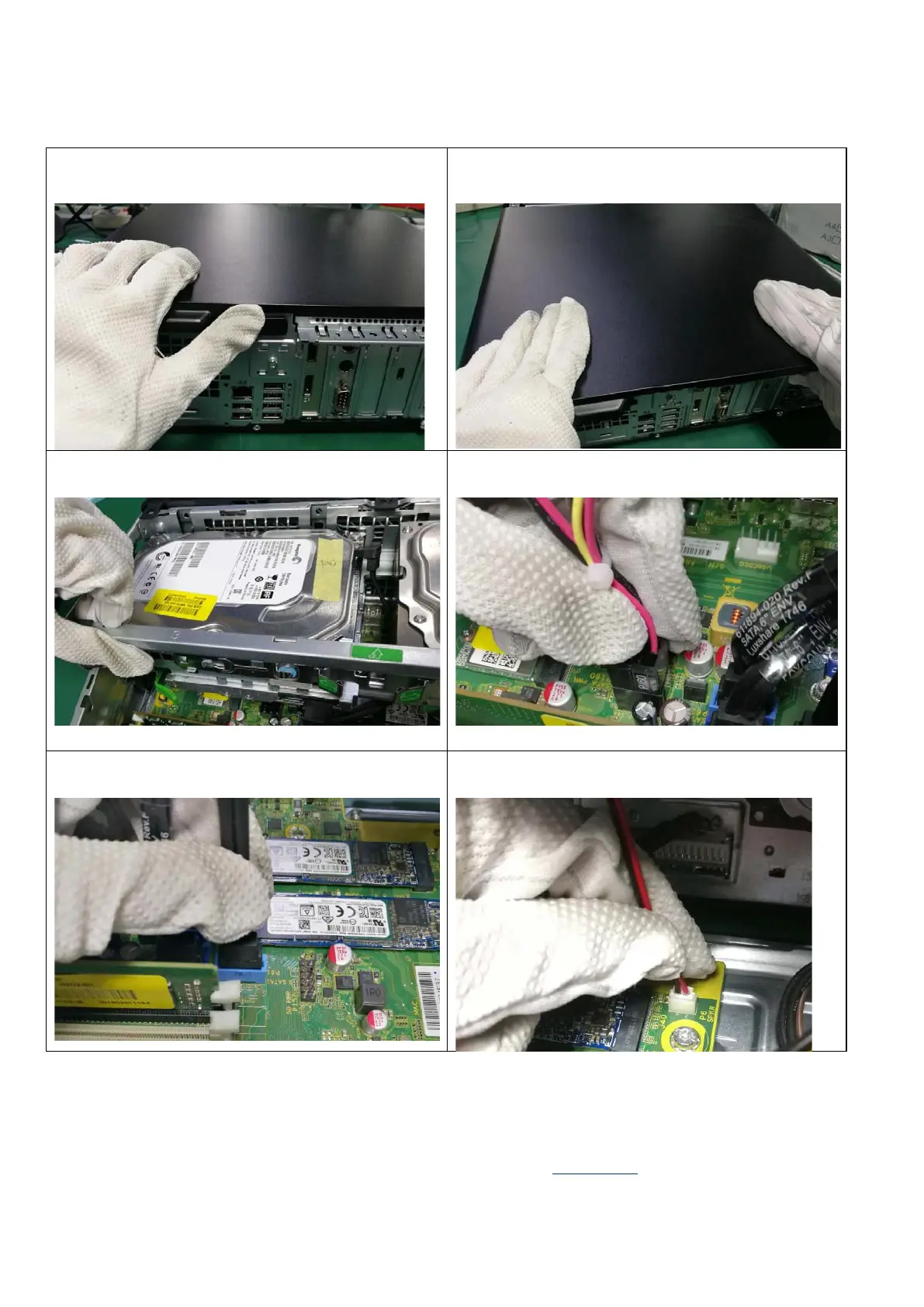

Figure 1Slide the latch and remove access panel
Figure 2 Remove the access panel
Figure 3 Rotate the driver cage from the hook
Figure 4 Disconnect Power SATA cable from MB
Figure 5 Disconnect All SATA cables from MB
Figure 6 Disconnect Speaker cable from MB

Other manuals for HP EliteDesk 800 G5

Preview: Maintenance And Service Guide
Maintenance And Service Guide149 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP EliteDesk 800 G5 and is the answer not in the manual?

HP EliteDesk 800 G5 Specifications

General IconGeneral
ChipsetIntel Q370
MemoryUp to 64 GB DDR4-2666 SDRAM
Storage OptionsM.2 SSD, 2.5" HDD/SSD
GraphicsIntel UHD Graphics 630
PortsUSB 3.1 Gen 2, USB Type-C, HDMI, DisplayPort, RJ-45, audio jacks
Operating SystemWindows 10 Pro, Windows 10 Home, FreeDOS
Form FactorMini Tower (MT), Small Form Factor (SFF)
NetworkingIntegrated Intel I219LM Gigabit Network Connection
WeightSFF: ~13.2 lbs
Processor Options9th Generation Intel® Core™ i9/i7/i5/i3 processors
