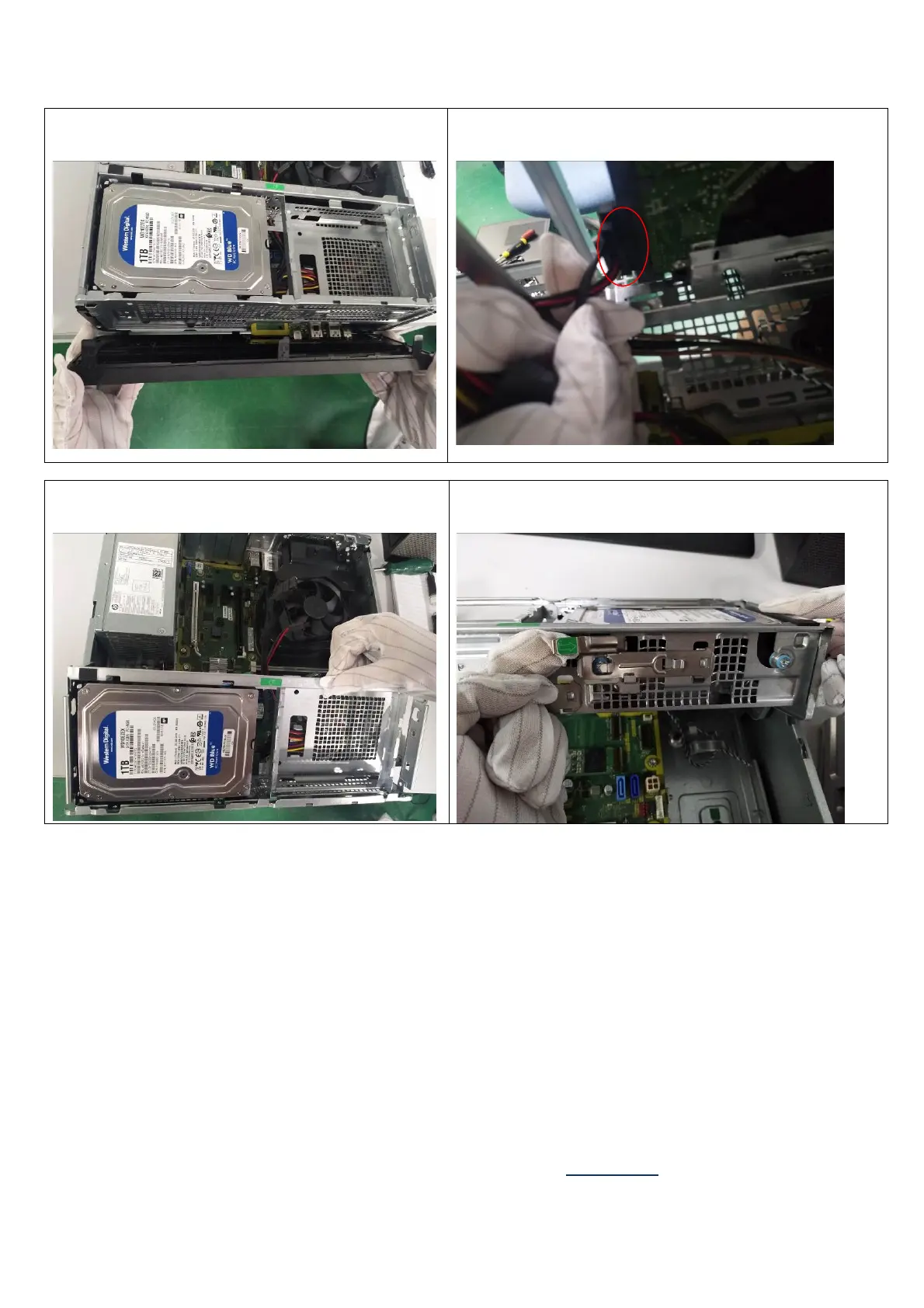

Step5 Remove Front Bezel from chassis
Step6 Disconnect HDD power cable and HDD SATA cable
from HDD.
Step7 Remove the driver cage from Chassis
Step8 Use T-15 screw driver to loose the screws of HDD and
remove HDD from HDD cage
To Next Page
