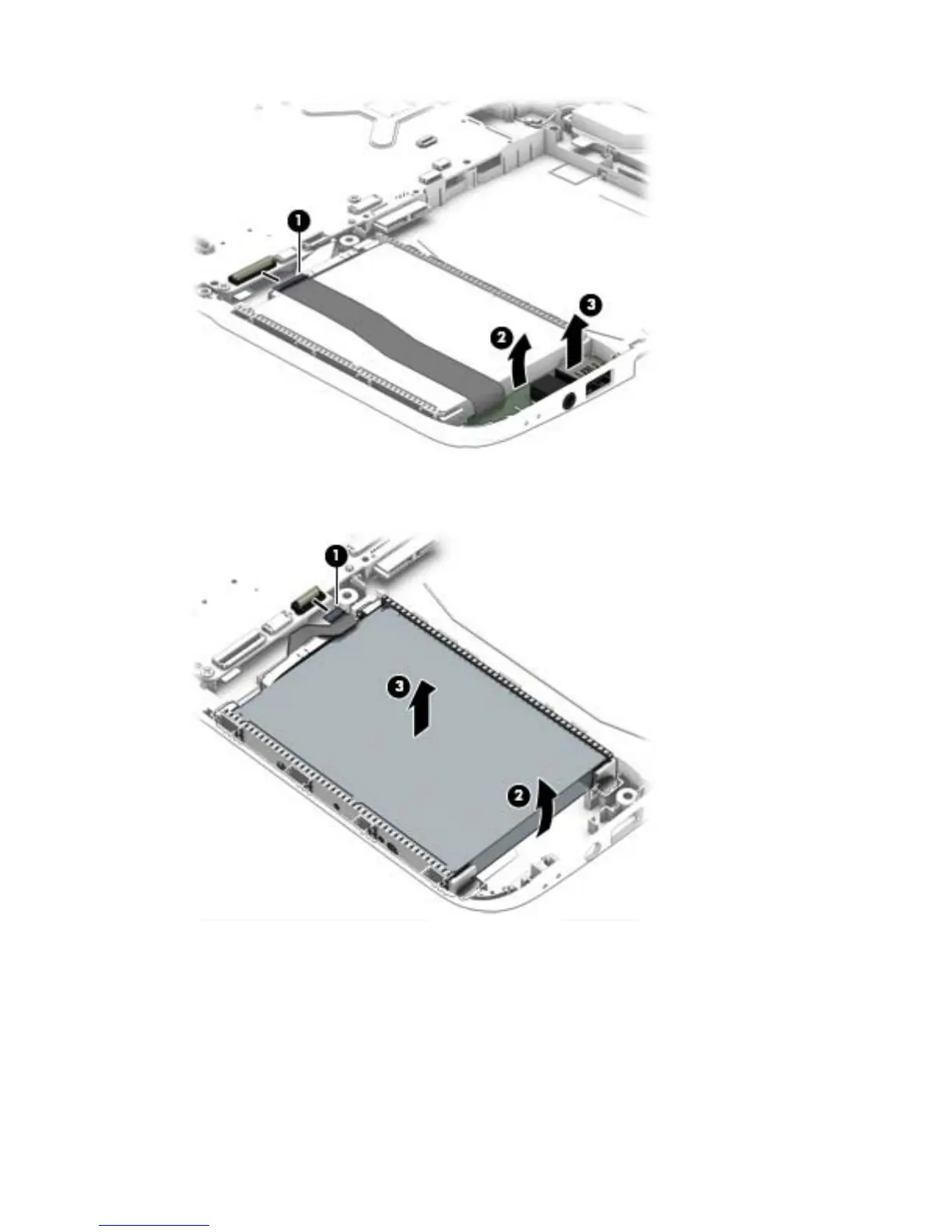

2. Disconnect the hard drive cable from the system board (1).
3. Lift up the front of the hard drive (2), and then remove the hard drive (3).
4. If it is necessary to disassemble the hard drive, perform the following steps:
a. Disconnect the hard drive cable connector from the hard drive (1).
44 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
