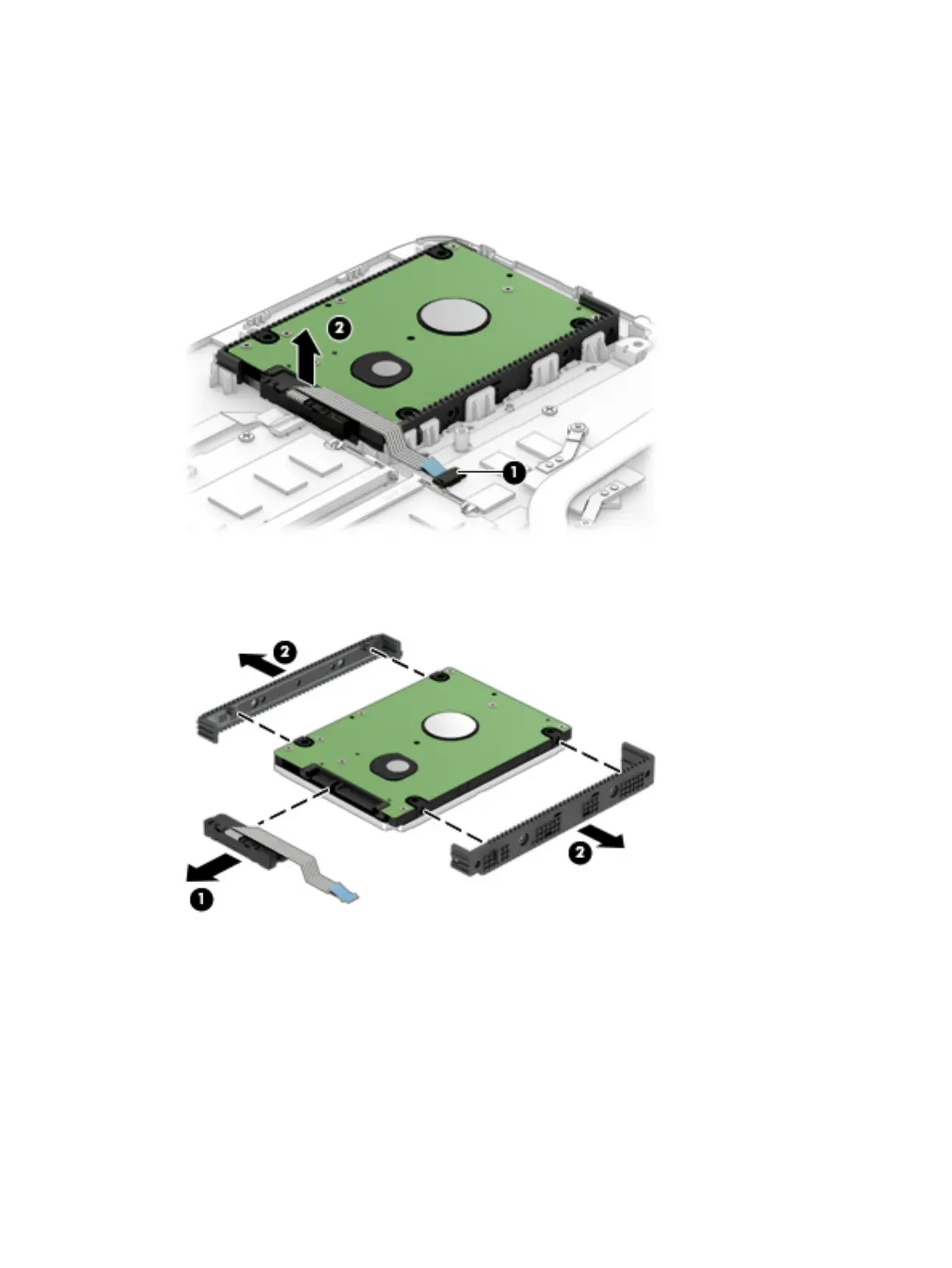

2. Remove the hard drive (2).
3. If it is necessary to disassemble the hard drive, detach the hard drive cable (1) from the hard drive.
4. Remove the brackets from each side of the hard drive (2).
Reverse this procedure to reassemble and install the hard drive.
HP
Condential
32 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
