HP Envy 17 Series - Power Connector Cable

Power connector cable
Description Spare part number
Power connector cable 809295-001
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 24).
5. Remove the optical drive (see Optical drive on page 25).
6. Remove the bottom cover (see Bottom cover on page 28).
7. Remove the system board (see System board on page 40).

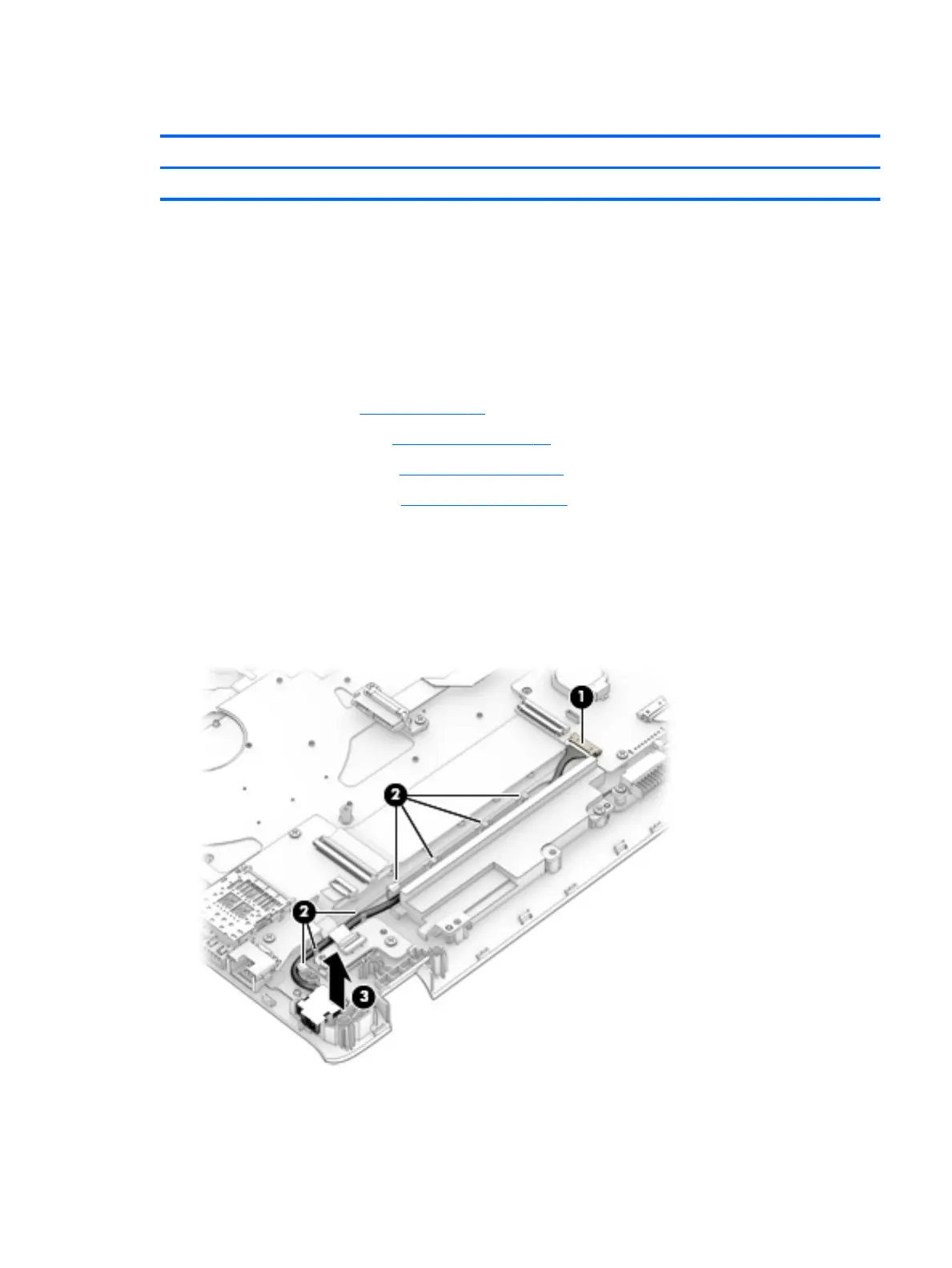

Remove the power connector cable:
1. Disconnect the power connector cable (1) from the system board.
2. Release the power connector cable from the clips (2) and routing channel built into the keyboard/
top cover.
3. Release the power connector (3) from the molded slot built into the keyboard/top cover.
4. Remove the power connector cable.
Reverse this procedure to install the power connector cable.
