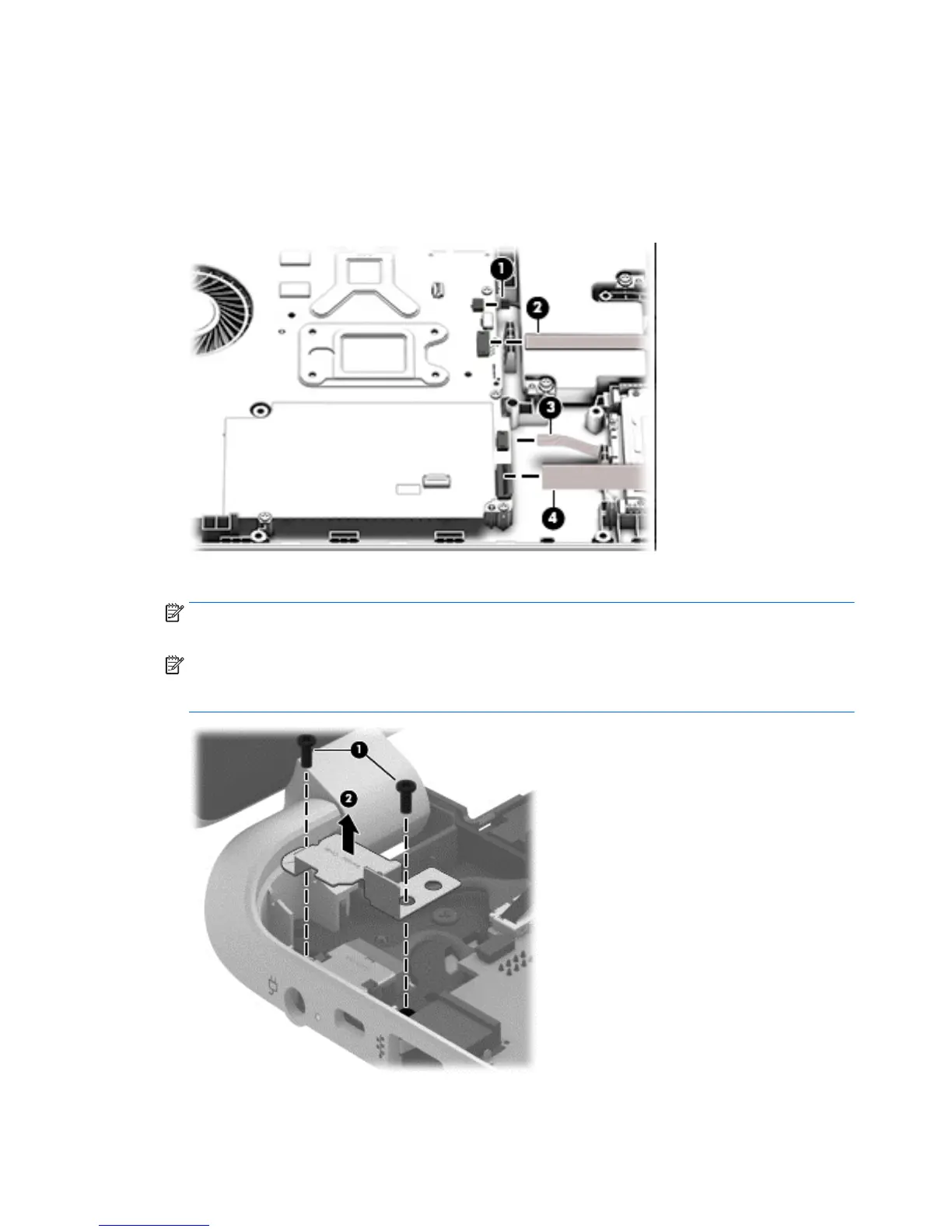

2. Disconnect the following cables if you have not already done so:
●
Subwoofer cable (1)
●
Optical drive cable (2)
●
Hard drive cable (3)
●
USB connector cable (4)
3. Remove the power connector cover by removing the screw (1) and lifting the cover (2).
NOTE: The power connector cover has two Phillips screws, however, the screw on the left is removed
during the base enclosure and top cover removal process.
NOTE: You will remove the power connector after you have removed the system board. This
procedure is to remove the power connector cover if you did not remove it when removing the display
panel.
4. Remove the six Phillips screws (1).
66 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
