Setting Up the Monitor
3–18 User’s Guide
3. If you are using an HP subwoofer, insert the subwoofer audio
plug into the right speaker subwoofer connector -.
4. Connect one end of the speaker DC power cable w to the
right speaker DC power connector q. Connect the other end
of the cable to the DC power connector 4 on the f monitor.
5. As needed, connect headphones to the headphone jack
connector (not shown) on the right speaker.

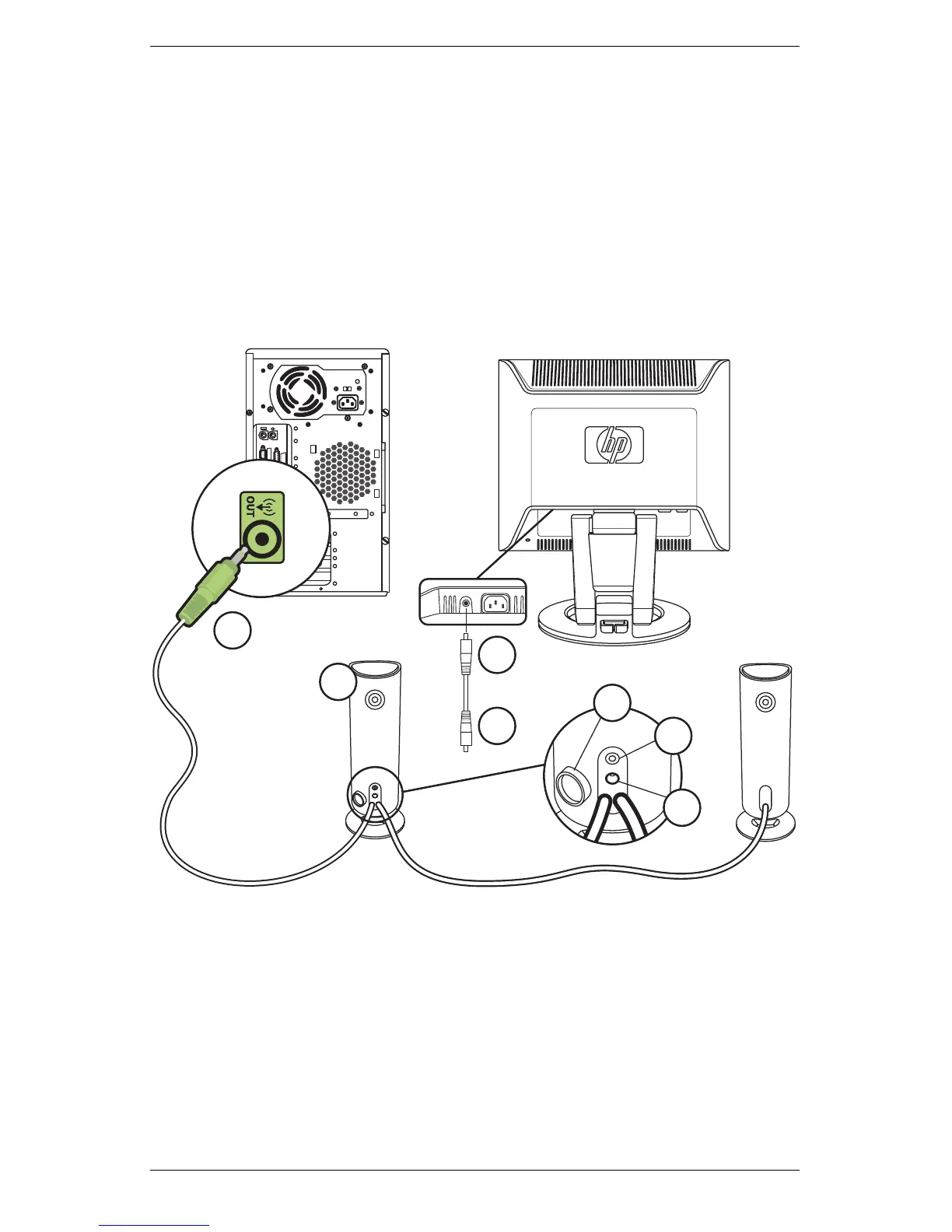

Connecting the f monitor speakers
