6. If it is necessary to replace the display bezel or the display assembly internal components, remove
the following:

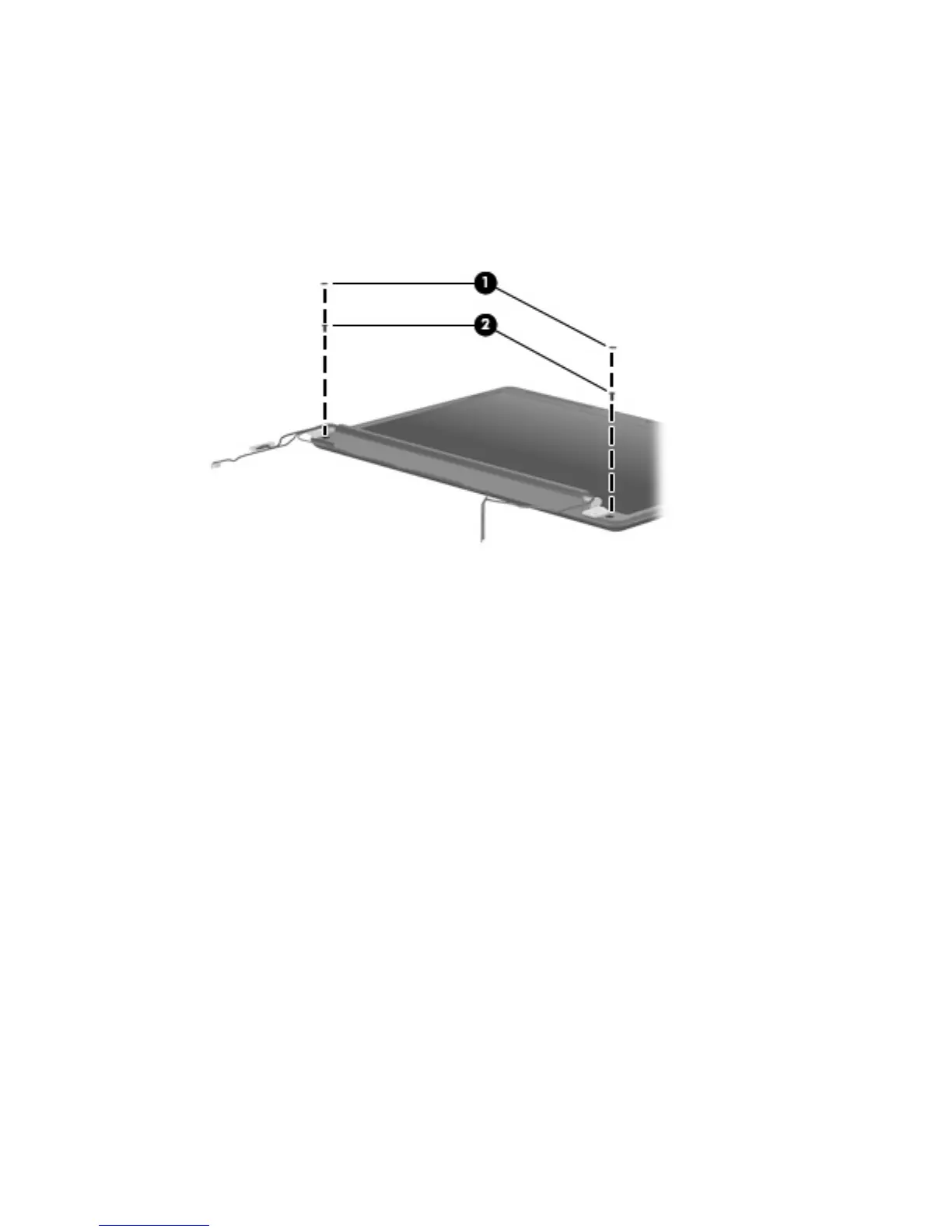

(1) Two rubber screw covers on the display bezel bottom edge (the display bezel rubber screw
covers are available in the Display Rubber Kit, spare part number 486584-001)
(2) Two Phillips PM2.5×8.0 screws that secure the display bezel to the display assembly (all display
assembly subcomponent screws are available in the Display Screw Kit, spare part number
486561-001)
7. Flex the inside edges of the bottom edge (1), left and right sides (2), and the top edge (3) of the
display bezel until the bezel disengages from the display enclosure.
8. Remove the display bezel (4).
The following display bezels are available:
●
For use only with HP G50 computer models equipped with webcam module, spare part
number 487607-001
●
For use only with HP G50 computer models not equipped with webcam module, spare part
number 487606-001
●
For use only with Compaq CQ50 computer models equipped with webcam module, spare part
number 486582-001
●
For use only with Compaq CQ50 computer models not equipped with webcam module, spare
part number 486555-001
Component replacement procedures 59
