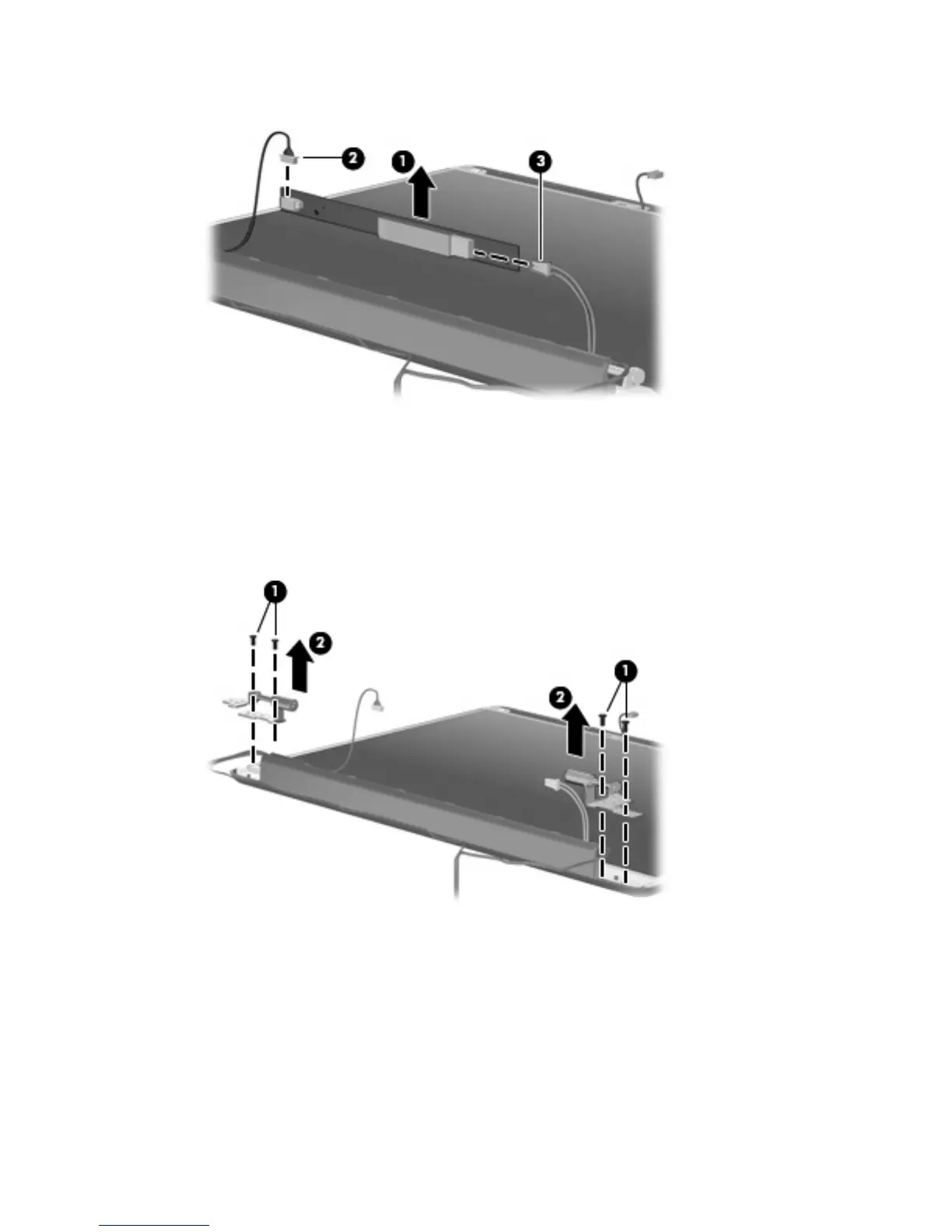

13. Disconnect the display panel cable (2) and the backlight cable (3) from the display inverter.
14. Remove the display inverter from the display enclosure. The display inverter is available using
spare part number 486556-001.
15. If it is necessary to replace the hinges, remove the two Phillips PM2.5×7.0 screws (1) that secure
each hinge to the display enclosure.
16. Remove the hinges (2). The hinges are available in the Display Hinge Kit, spare part number
486558-001.
17. If it is necessary to replace the display panel, remove the two Phillips PM2.5×5.0 screws (1) that
secure the display panel to the display enclosure.
Component replacement procedures 61
