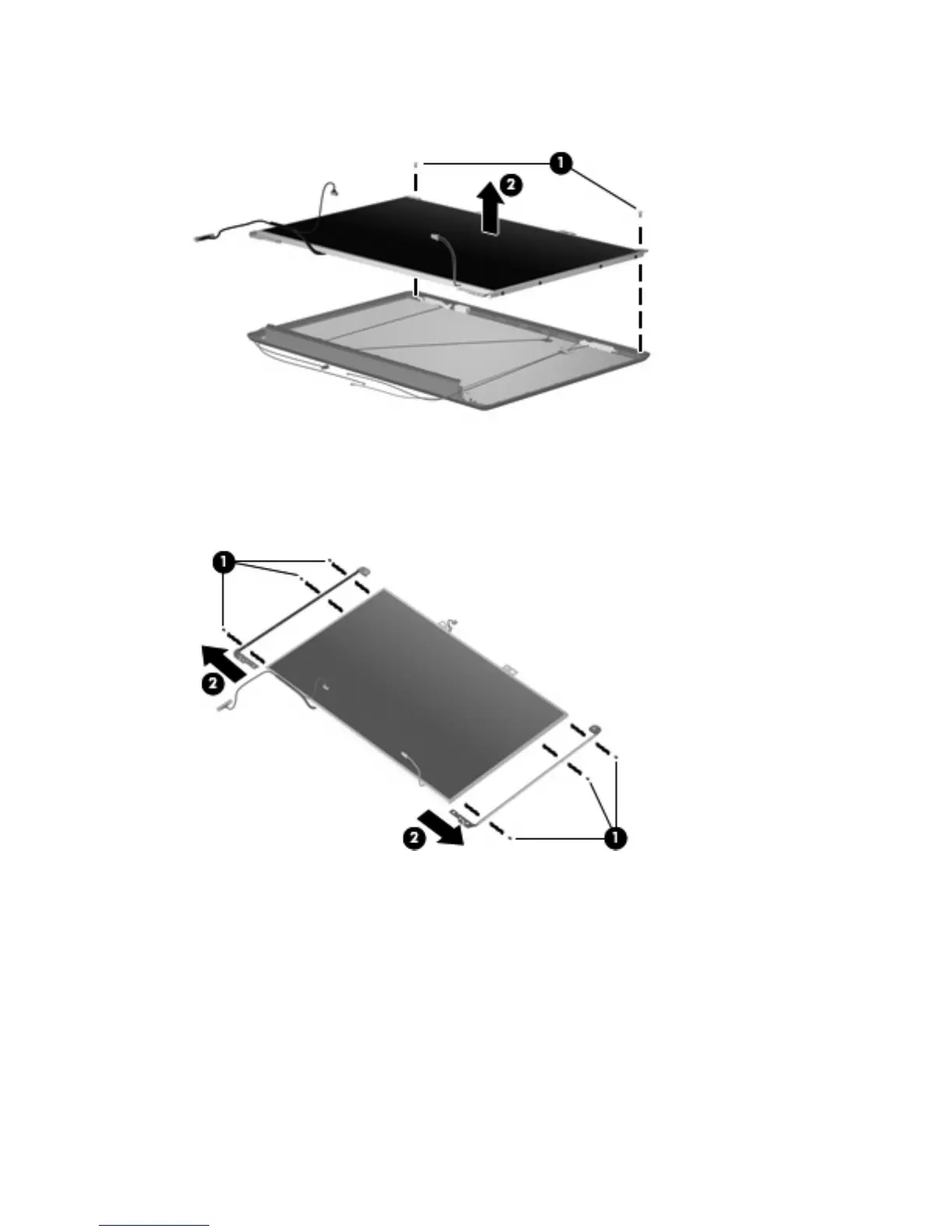

18. Remove the display panel (2) from the display enclosure. The display panel is available using spare
part number 485027-001.
19. If it is necessary to replace the display panel brackets, remove the three Phillips PM2.0×3.0
screws (1) that secure the brackets to the display panel.
20. Remove the display panel brackets (2) from the display panel. The display panel brackets are
available using spare part number 486559-001.
21. If it is necessary to replace the wireless antenna transceivers and cables, release the tab (1) built
into the display enclosure that secures the wireless antenna cables.
22. Detach the main and auxiliary transceivers (2) from the display enclosure.
23. Detach the third transceiver (3) from the display enclosure, when present.
62 Chapter 4 Removal and replacement procedures
