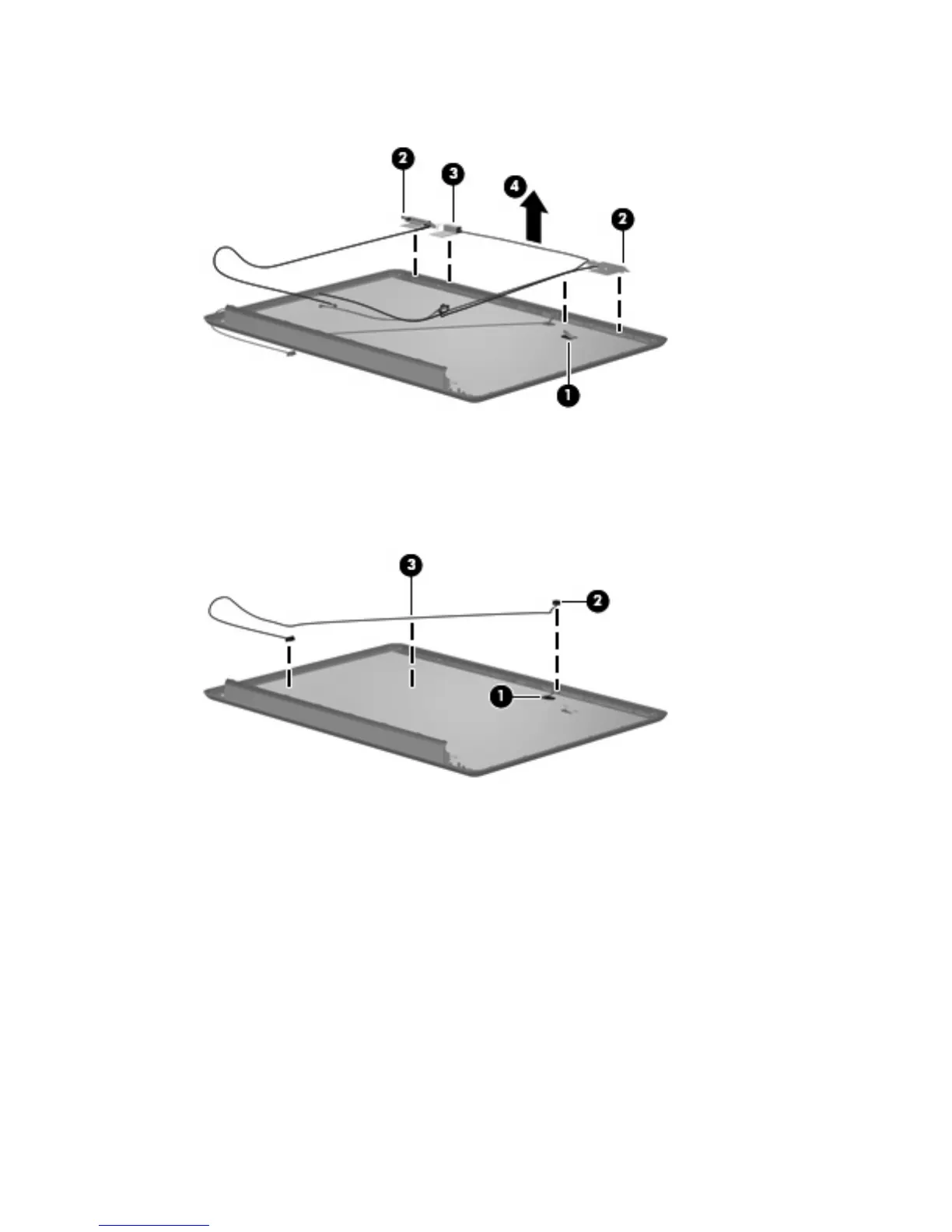

24. Remove the wireless antenna transceivers and cables (4) from the display enclosure. The wireless
antenna transceivers and cables are available using spare part number 486562-001.
25. If it is necessary to replace the microphone and cable, release the tab built into the display enclosure
shielding (1) that secures the microphone cable.
26. Remove the microphone receiver (2) from the clip built into the display enclosure and the
microphone cable (3) from the display enclosure. The microphone receiver and cable are available
using spare part number 486560-001.
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures 63
