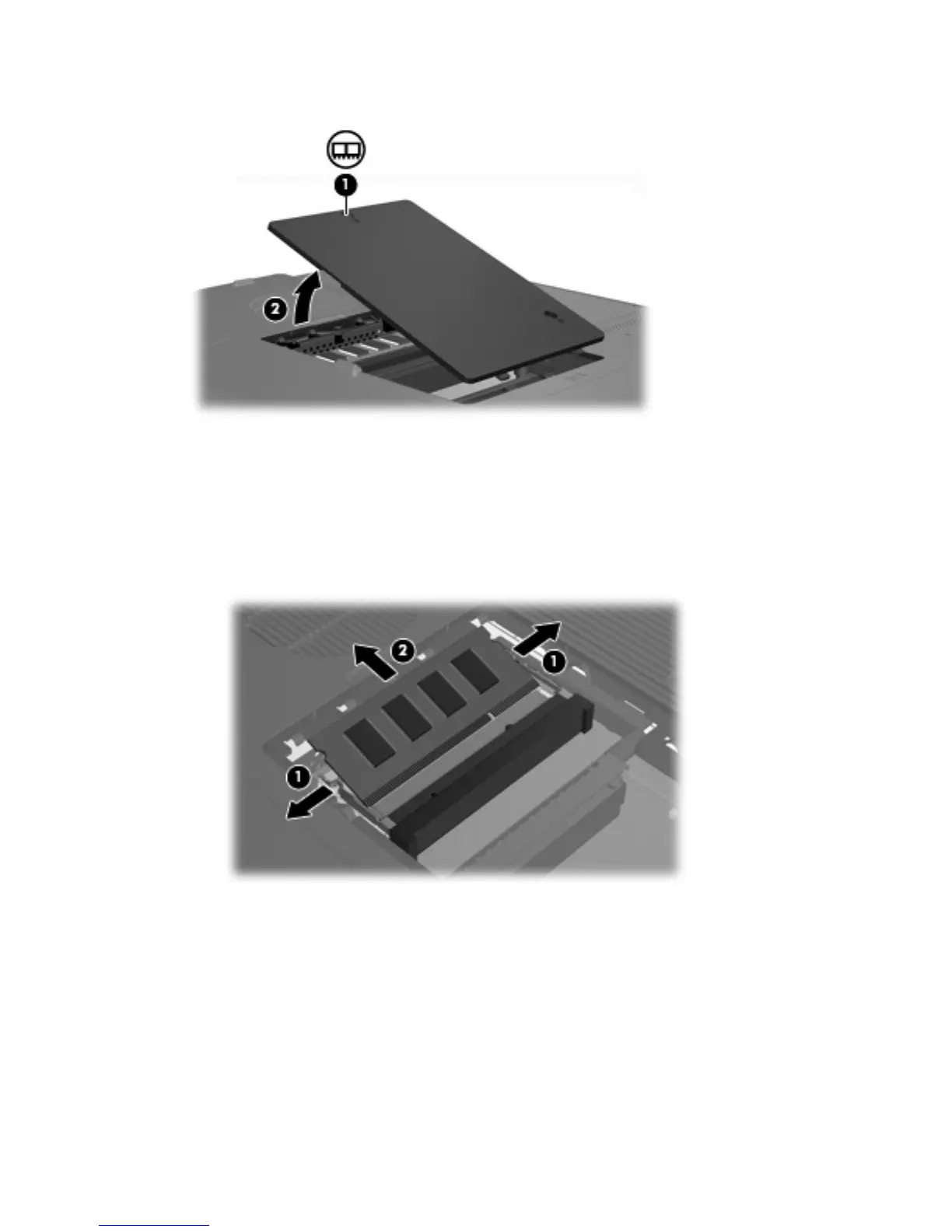

9. Lift the memory module compartment cover (2) away from the computer.
10. To remove a memory module:
a. Pull away the retention clips (1) on each side of the memory module . (The memory module
tilts up.)
b. Grasp the edge of the memory module (2) and gently pull the module out of the memory
module slot. (To protect a memory module after removal, place it in an electrostatic-safe
container.)
11. To insert a memory module:
a. Align the notched edge (1) of the memory module with the tab in the memory module slot.
b. With the memory module at a 45-degree angle from the surface of the memory module
compartment, press the module (2) into the memory module slot until it is seated.
62 Chapter 7 Memory Modules ENWW
