Recycling
Maintenance and Service Guide 10–3

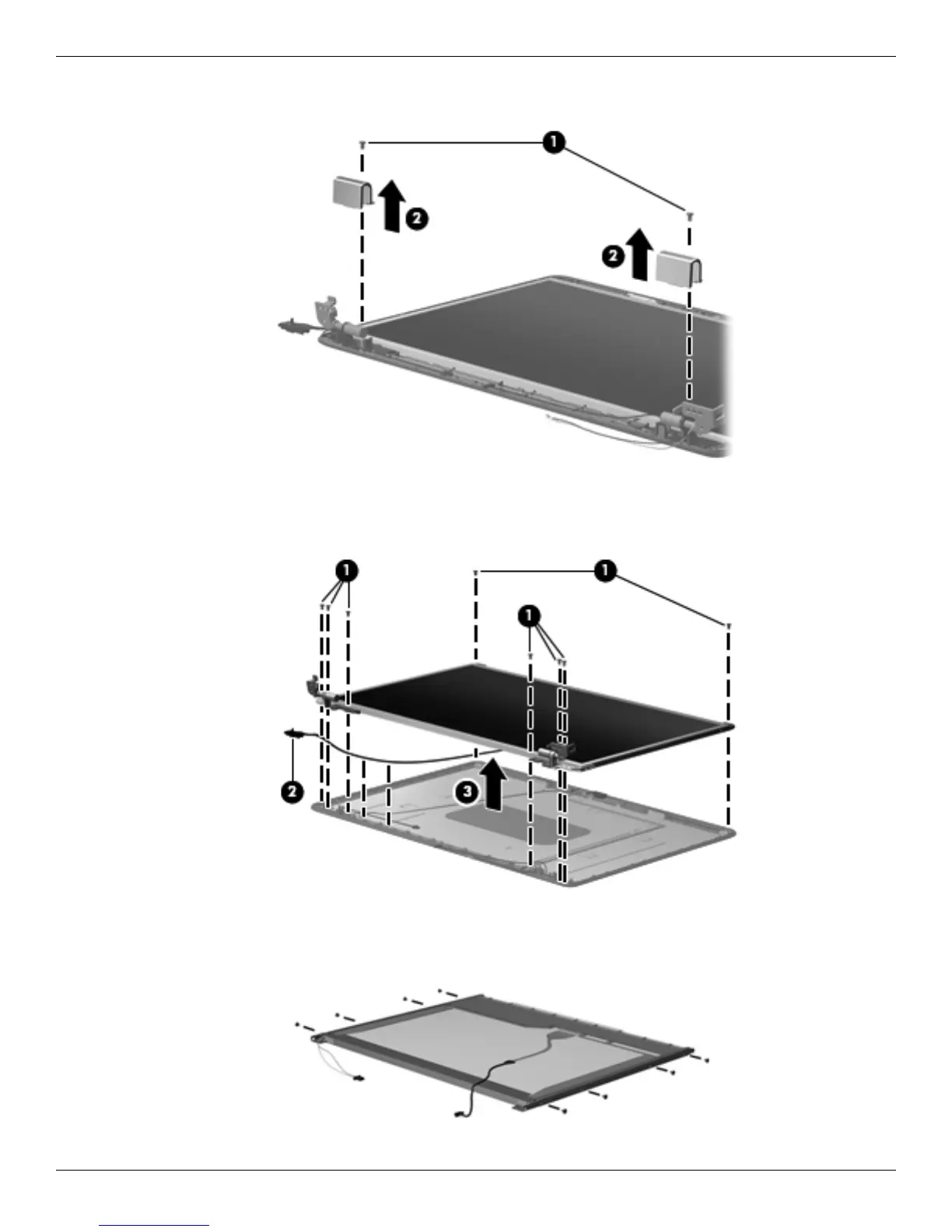

4. Remove the two screws 1 that secure each hinge to the display enclosure and lift up to remove the display
hinge covers 2.
5. Remove all screws 1 that secure the display panel assembly to the display enclosure.
6. Remove the display panel assembly 2 from the display enclosure.
7. Turn the display panel assembly upside down.
8. Remove all screws that secure the display panel frame to the display panel.
