4–46 Maintenance and Service Guide
Removal and replacement procedures
RTC battery
Before removing the RTC battery:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first disconnecting the power cord from the AC outlet and then
disconnecting the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-7).
5. Remove the hard drive (see “Hard drive” on page 4-8).
6. Remove the memory module (see “Memory module” on page 4-11).
7. Remove the wireless module (see “Wireless module” on page 4-13).
8. Remove the optical drive (see “Optical drive” on page 4-16).
9. Remove the keyboard (see “Keyboard” on page 4-18).
10. Remove the top cover (see “Top cover” on page 4-23).
11. Remove the display assembly (see “Display assembly” on page 4-28).
12. Remove the sytem board (see “System board” on page 4-44).

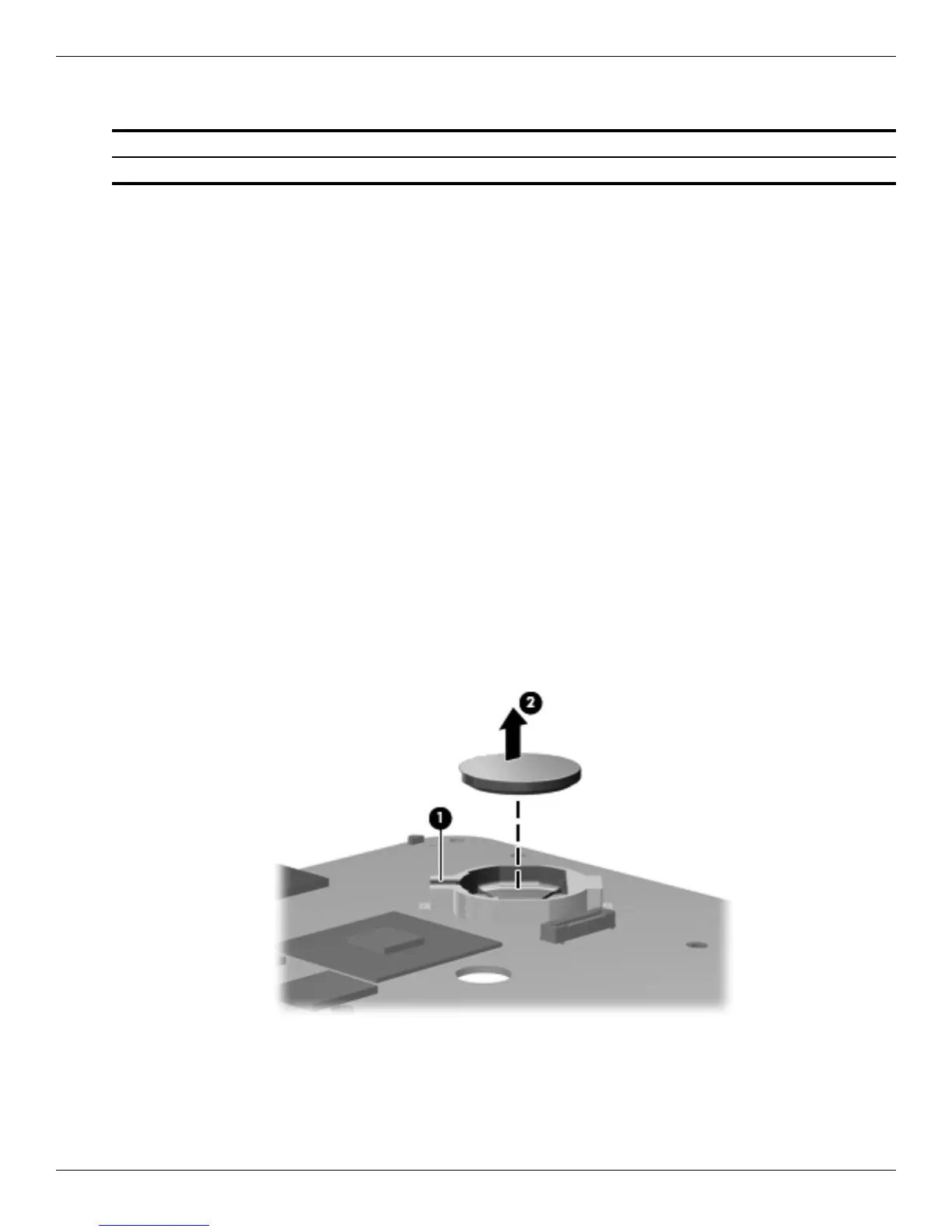

Remove the RTC battery:
1. Use a sharp, non-conductive tool to release the clip 1 that secures the battery to the system board.
2. Lift the battery 2 out of the computer.
Reverse this procedure to install the RTC battery.
Description Spare part number
RTC battery 602745-001
