Removal and replacement procedures
Maintenance and Service Guide 4–19

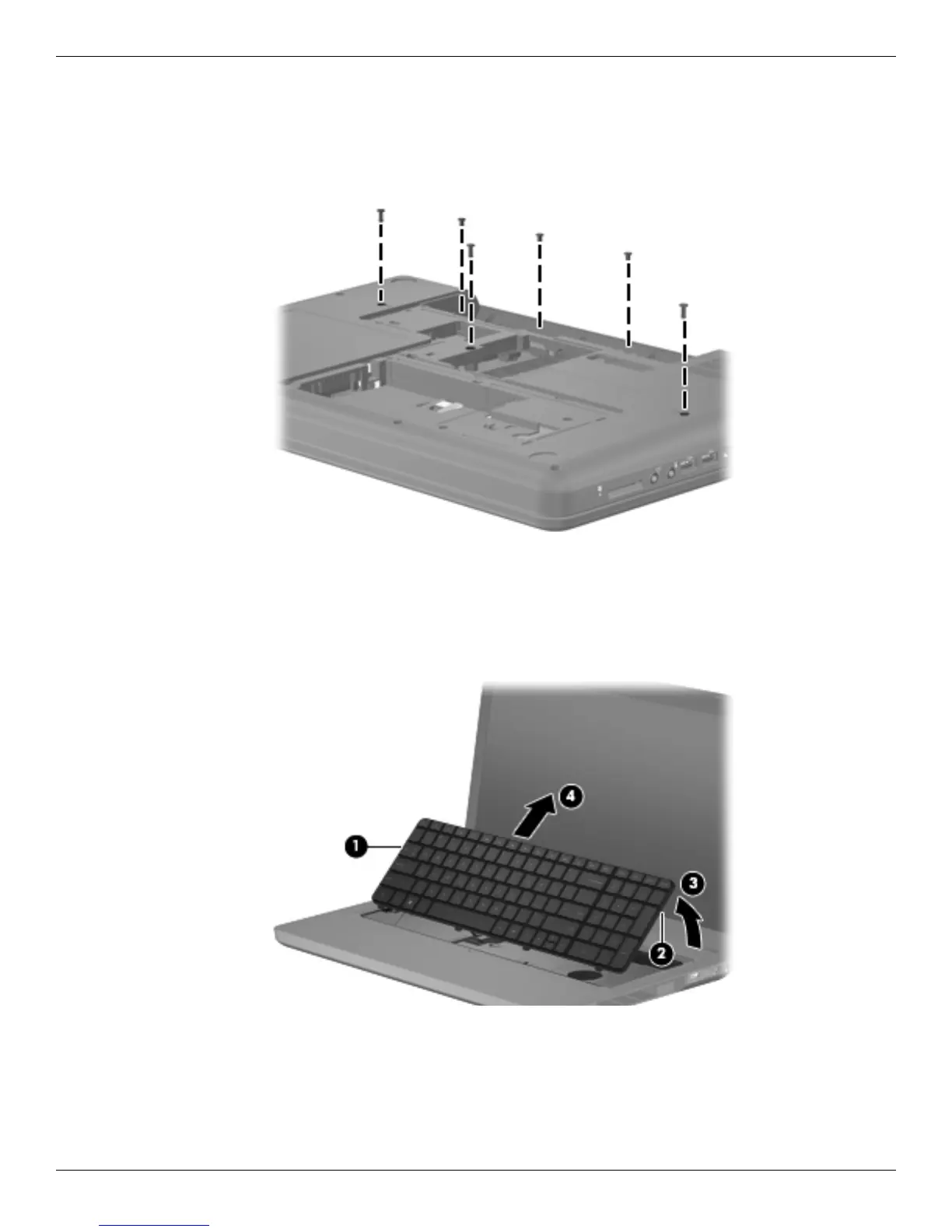

Remove the keyboard:
1. Turn the computer upside down, with the front toward you.
2. Remove the five Phillips PM2.5×5.0 screws that secure the keyboard to the computer. Four of these screws are
identified by a keyboard icon embossed on the base enclosure.
3. Turn the computer right-side up, with the front toward you.
4. Open the computer as far as possible.
5. Release the tabs along the left 1 and right 2 edges of the keyboard using a thin flat-bladed screwdriver.
6. Lift the rear edge of the keyboard 3, and set the keyboard back towards the display 4.
