Removal and replacement procedures
Maintenance and Service Guide 4–29

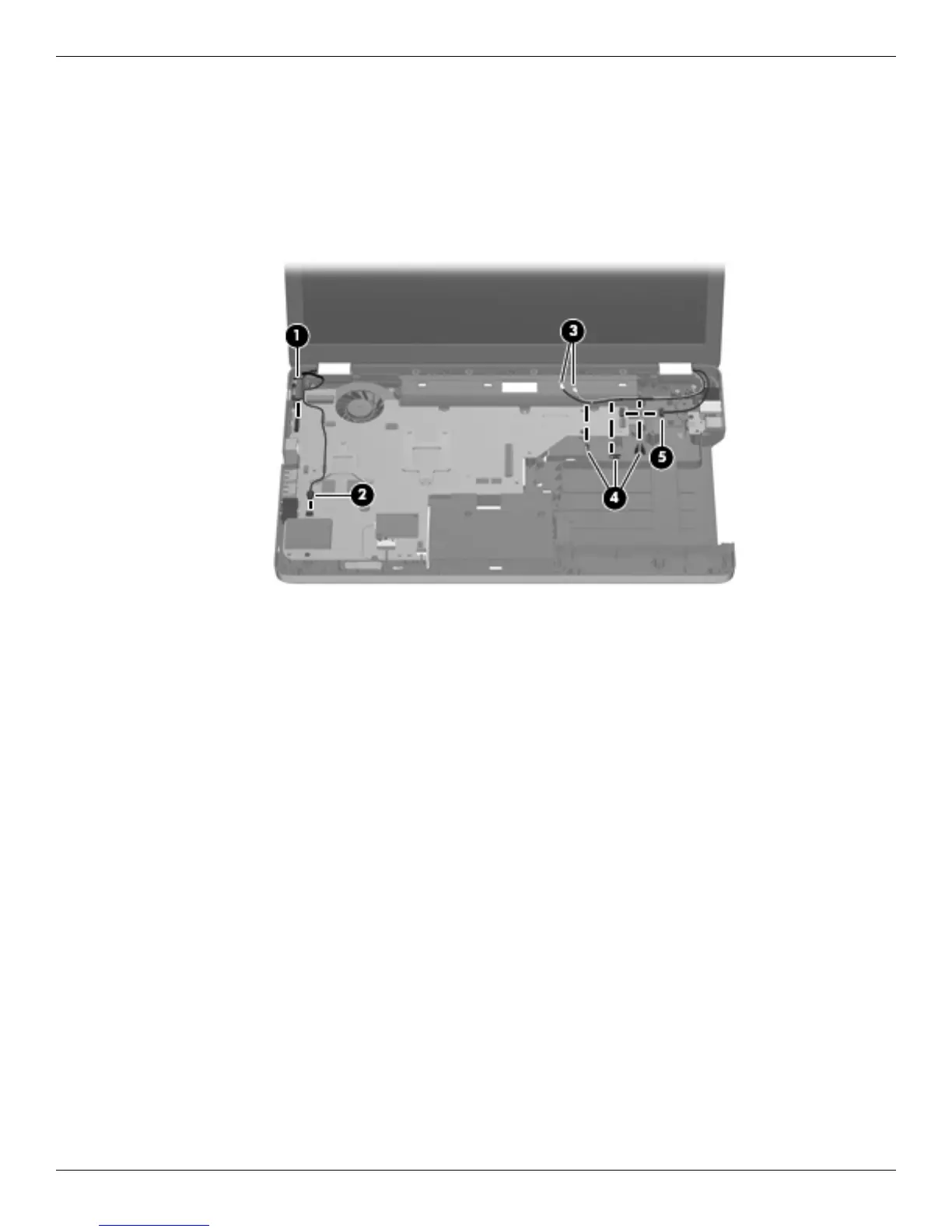

To remove the display assembly:
1. Disconnect the display panel cable 1, and then disconnect the microphone cable 2 from the system board and
remove the cable from its routing channel.
2. Pull the antenna cables through the opening in the base enclosure 3 and disengage the cables from the clip in
the routing channel leading to the display hinge 4.
3. Disconnect the webcam cable 5 from the system board and release it from the clips that attach it to the system
board.
