4–38 Maintenance and Service Guide
Removal and replacement procedures

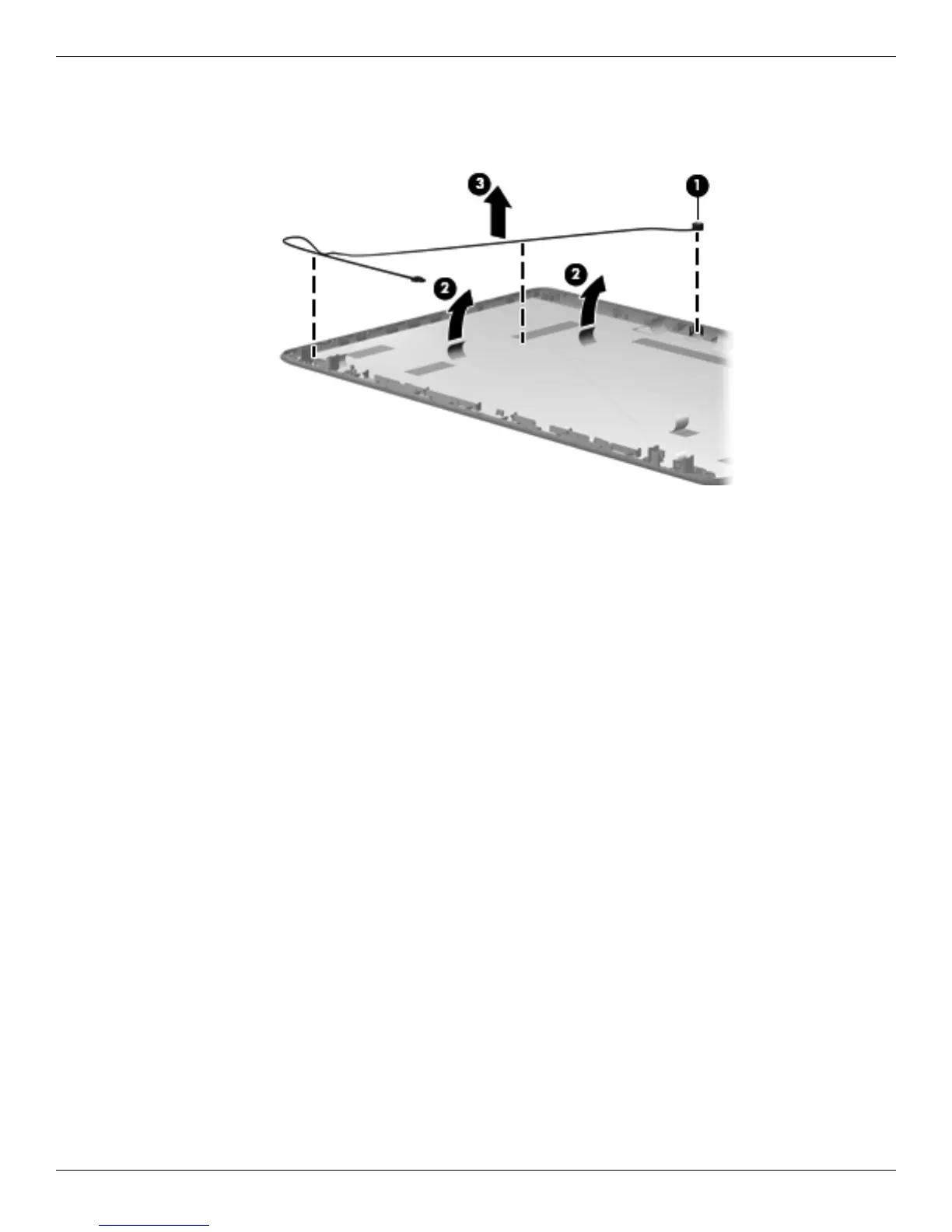

To remove the microphone module:
1. Release the microphone from the clip 1 and release the microphone cable from the adhesive tabs 2.
2. Lift up to remove the microphone cable 3. The microphone module is available with the LCD cable kit using
spare part number 599087-001.
Reverse this procedure to install the microphone module.
