4–52 Maintenance and Service Guide
Removal and replacement procedures

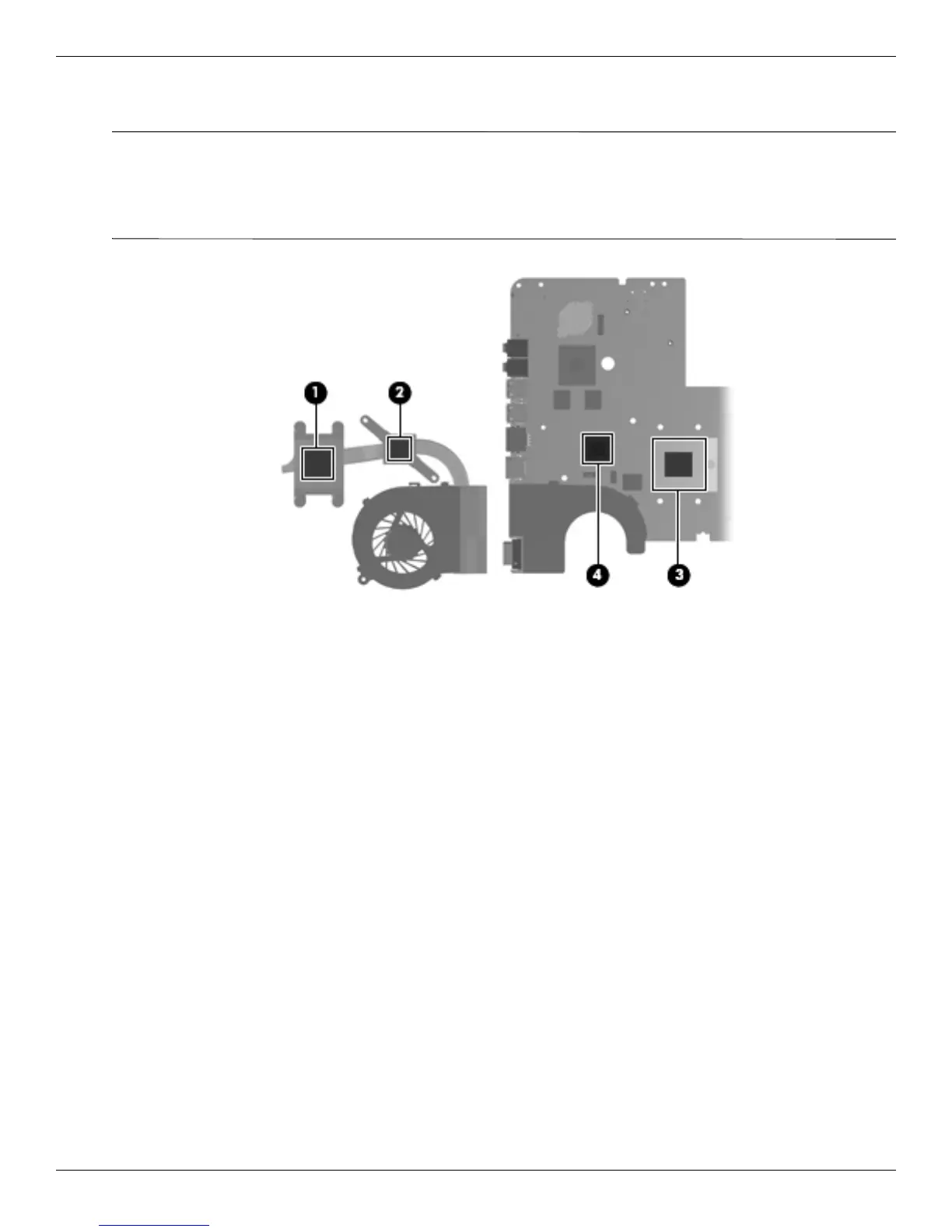

The following illustration shows the replacement thermal material locations for computer models equipped with
graphics subsystems with discrete memory.
✎
The thermal material must be thoroughly cleaned from the surfaces of the fan/heat sink assembly and the system
board components each time the fan/heat sink assembly is removed. Thermal grease is located on the section of
the fan/heat sink assembly 1 that services the processor 3. A thermal pad is located on the section of the
fan/heat sink assembly 2 that services the Northbridge chip 4. Replacement thermal grease and pads are
included with all system board, fan/heat sink assembly, and processor spare part kits.
Reverse this procedure to install the fan/heat sink assembly.
