64 user’s guide
storing cds, dvds, or memory

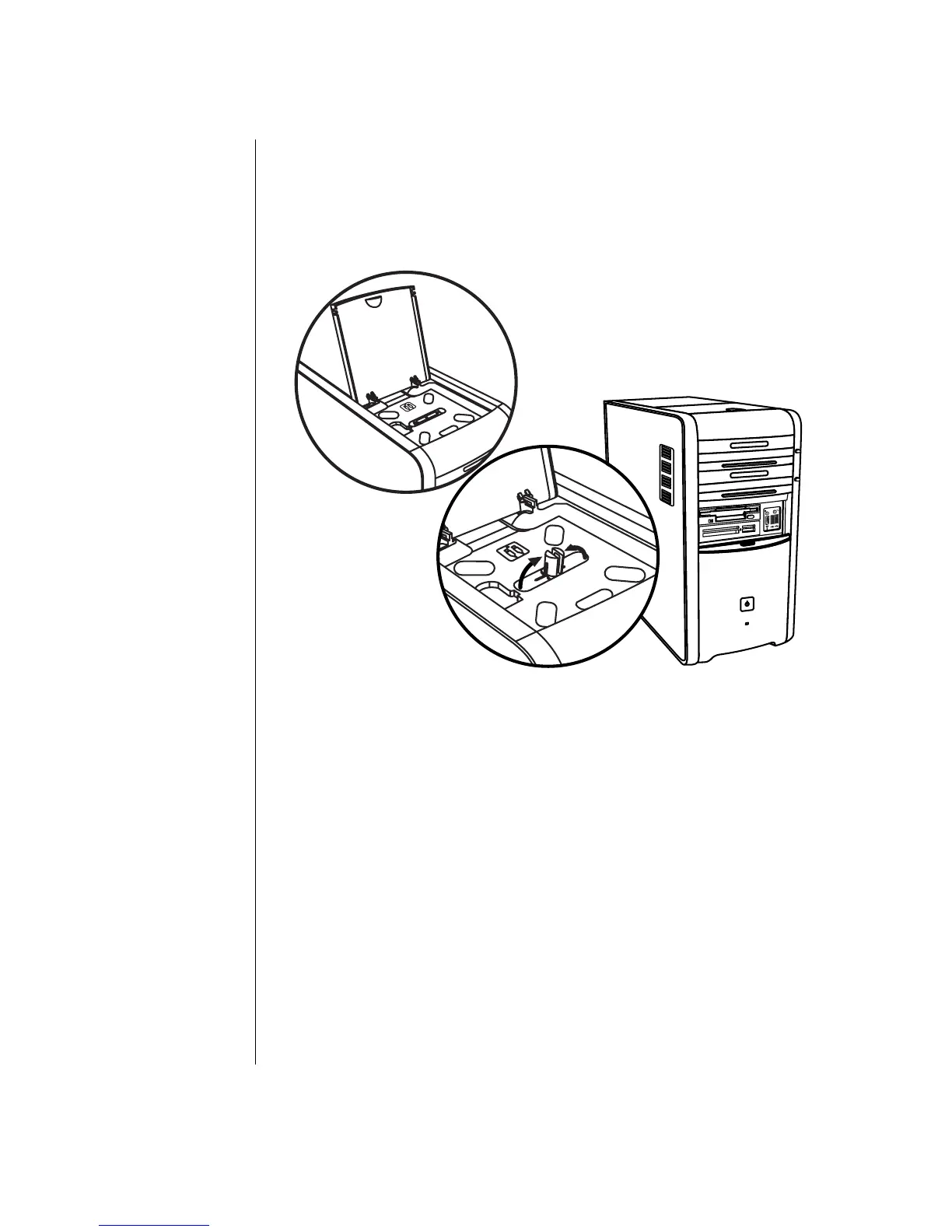

To store CDs and DVDs, open the bay cover (figure A) and gently lift the two
sections to form the spindle (figure B). You can store up to ten discs.
To store memory cards, open the top cover and, if necessary, lower the two
spindle sections (figure A).
A
B
docking a peripheral device
To use the multi-storage bay for a peripheral device, do the following:
1 Open the bay cover (A). Hold the cover on each side near the hinges, and then
lift the cover and slide it toward the back of the chassis (C). Gently lift it off.
2 Thread the cables through the cable tunnel opening at the back of the bay (D).
Connect data and power cables to the peripheral device, and place the
peripheral in the bay.
