HP HB4 User Manual

68 user’s guide

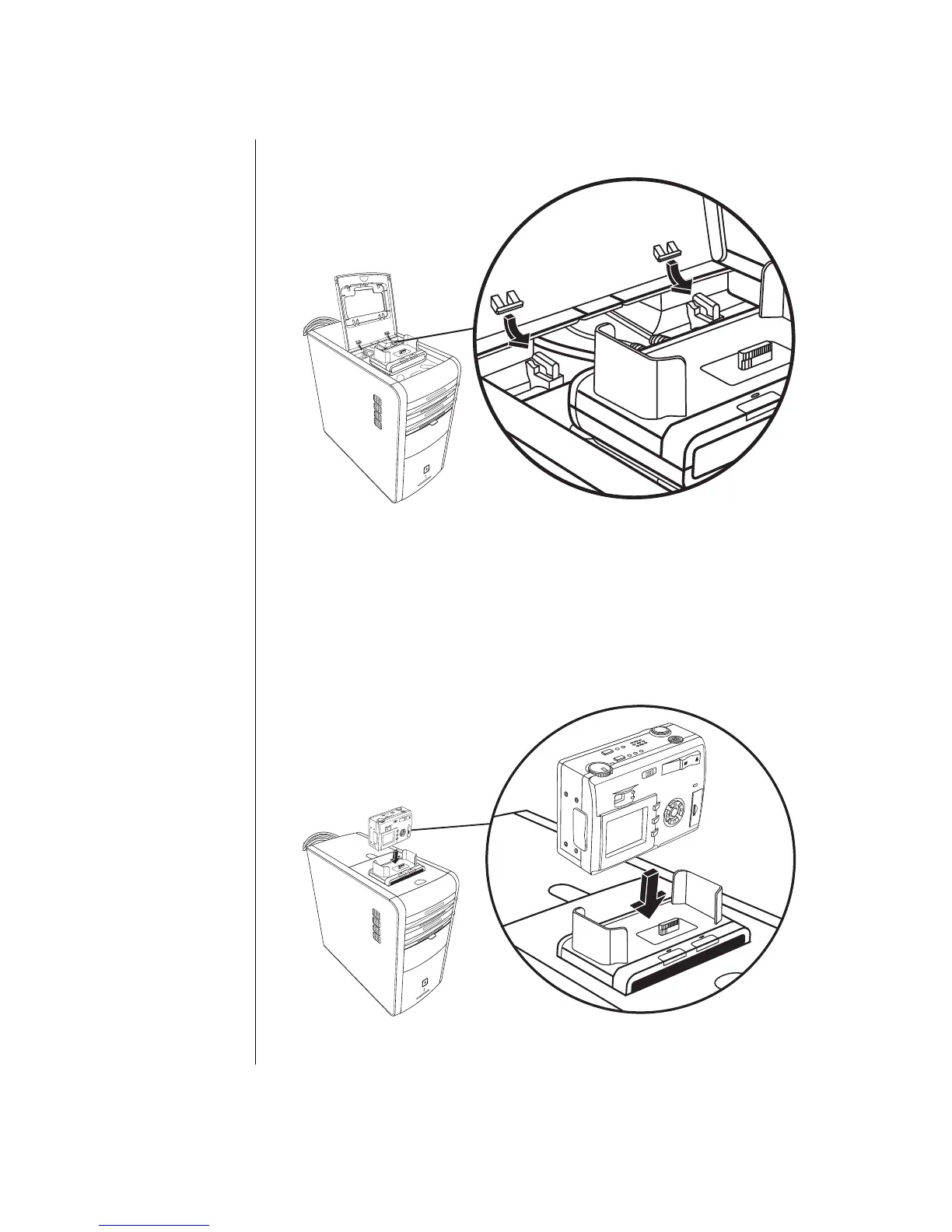

5 Put the new cover on the cover hinges (P). Close the cover over the DockSpot.
hp dvd writer & cd-writer
ex
pa
n
sio
n / b
a
y
hp pavilion 0000xxx
P
6 Connect the DockSpot cables:
• Plug the USB cable (K) into the back of the PC.
• Plug the red and yellow connectors (L) into a TV if you want to view the
camera images on a TV.
• Plug the power cord (M) into a power outlet.
7 Insert the camera: Hold the camera over the camera cradle (R) with the viewer
window toward the front of the PC, and lower the camera onto the cradle.
hp dvd writer & cd-writer
expansion / bay
h
p
p
a
v
i
l
io
n
0
0
0
0
x
x
x
R

HP HB4 Specifications

General

Brand	HP
Model	HB4
Category	Desktop
Language	English
