1–4 Reference Guide

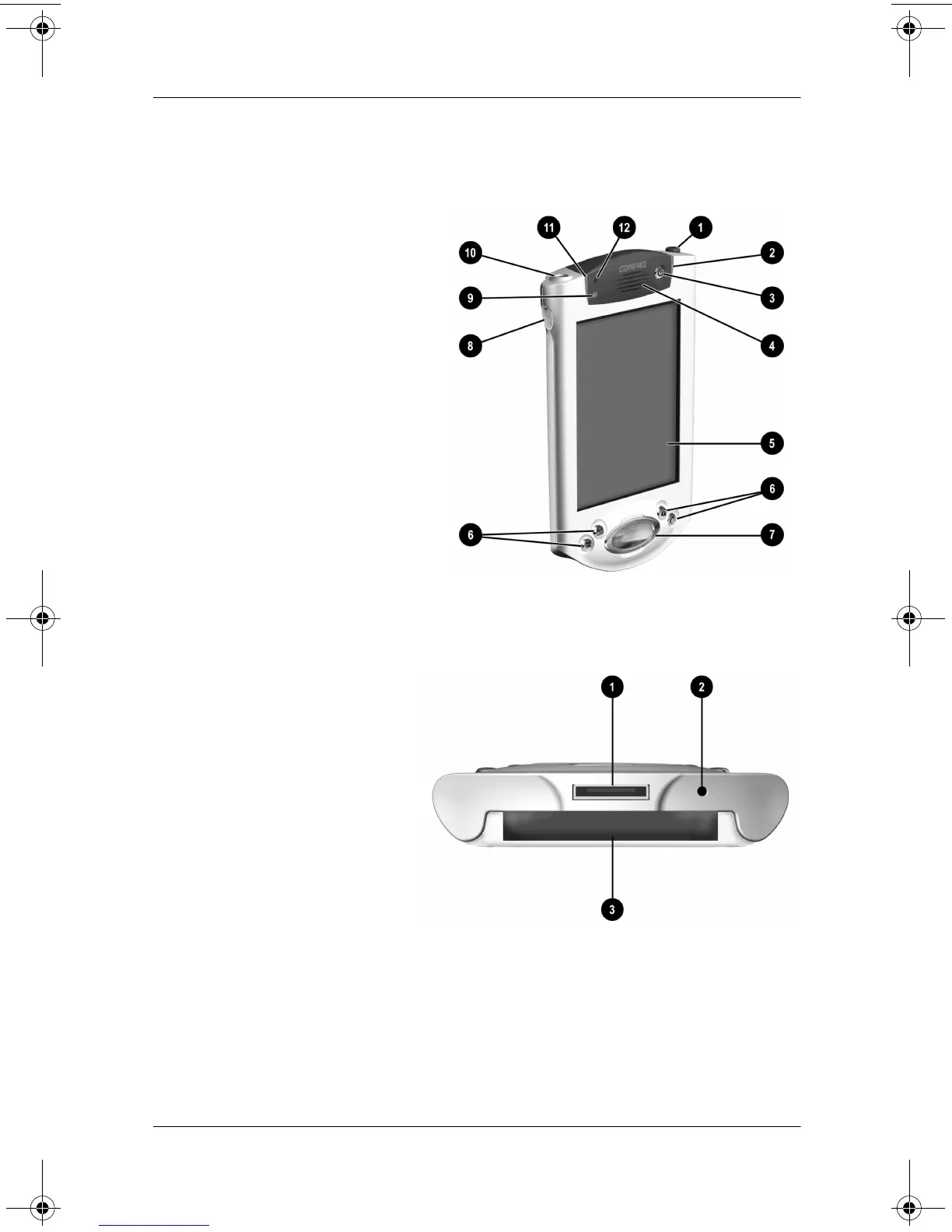

Getting Acquainted
Front Panel
Bottom Panel
1. Stylus:pushtoeject,pushtolock
2. Power Indicator: amber flash = charging;
amber solid = charged; green = alarm
3. Power Button
4. Speaker: alarms, recordings
5. Color Display
6. Programmable Application Buttons 1-4
(left to right): default setting for button 1 is
Calendar, button 2 is Contacts, button 3 is
Inbox, button 4 is iPAQ Task
7. Navigation Button: scroll through a list
8. Record/Application Button
9. Light sensor: adjusts backlight
10. Stereo Headphone Jack
11. Active Bluetooth Indicator: flashes when
Bluetooth radio is on (Bluetooth models
only)
12. Microphone
1. Charging/Communications Port:
connect to universal cradle, USB, or
serial cable
2. Unit Reset Switch: reset with stylus
3. Expansion Pack Connector: connect to
an optional Expansion Pack
