To install the router module:
1. Using a Torx T-10 or flat-blade screwdriver, loosen the two captured
screws holding the cover plate over the hub’s Expansion Slot, then
remove the cover plate. Note that the screws are spring-loaded and
will release outward when unscrewed far enough. Do not unscrew
them completely from the cover plate.
2. Wrap one end of a grounding wrist strap (one is supplied with the
router module) around your wrist. Connect the other end as follows:
• If using the grounding wrist strap supplied with the hub, connect
the other end to the unpainted surface at the left of the hub’s
Expansion Slot.
• If using a grounding wrist strap that has an alligator clip at the
other end, connect the clip to the left screw on the back of the
hub.

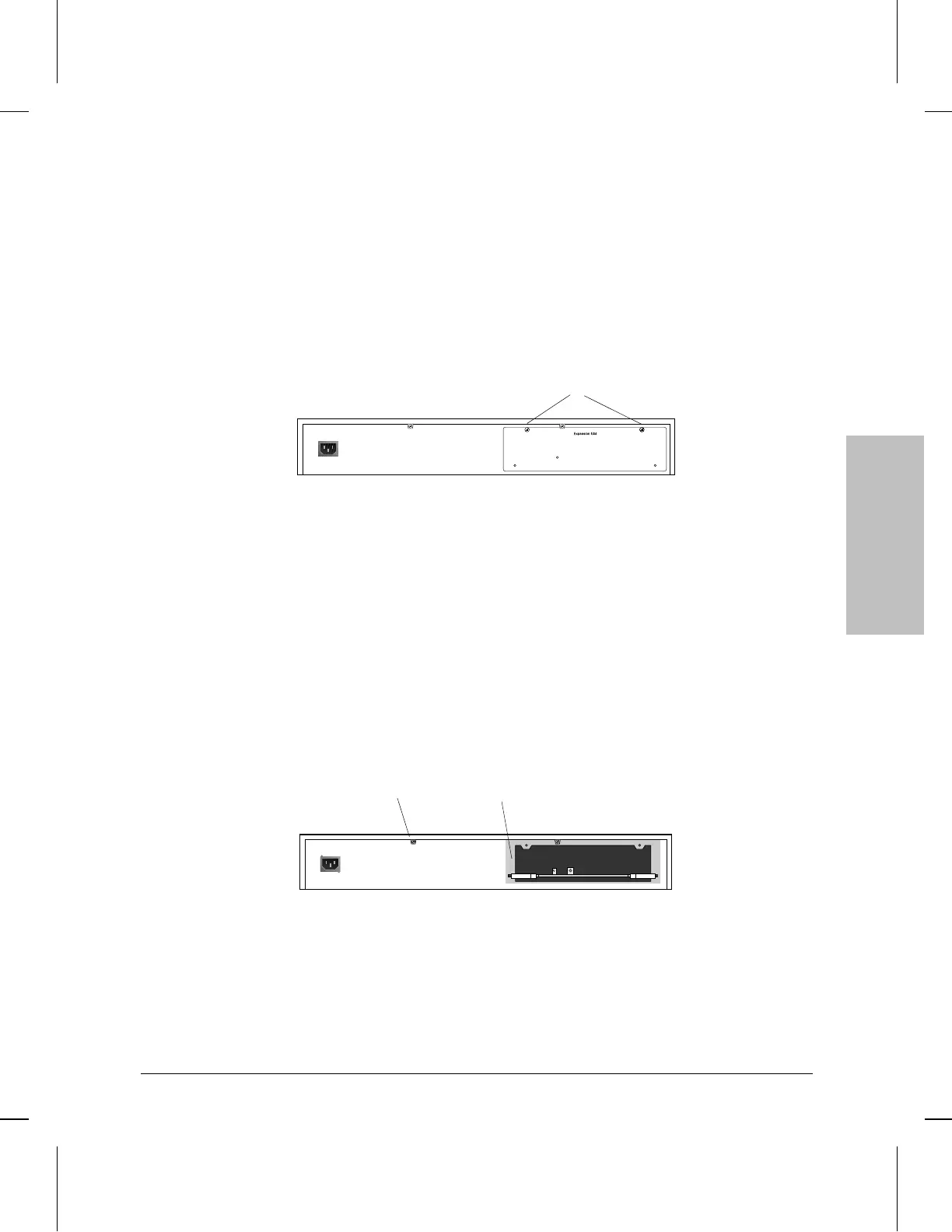

Loosen these two screws
Figure 1-3. Cover Plate Screws
Connect grounding
wrist strap here ...
... or here
Figure 1-4. Connecting Grounding Wrist Strap
Installation
3. Install the Router Module.
