8.
Insert the supplied
1
⁄
4
-inch number 4-40 screws through the holes in
the SNMP module into the standoffs, then secure them using a
Phillips (cross-head) screwdriver. Do not overtighten the screws.
Caution In the next step, be careful not to damage the router module by scraping
it against the edges of the Expansion Slot.
9. Position the assembled router and SNMP modules in back of the
hub’s Expansion Slot as shown below.

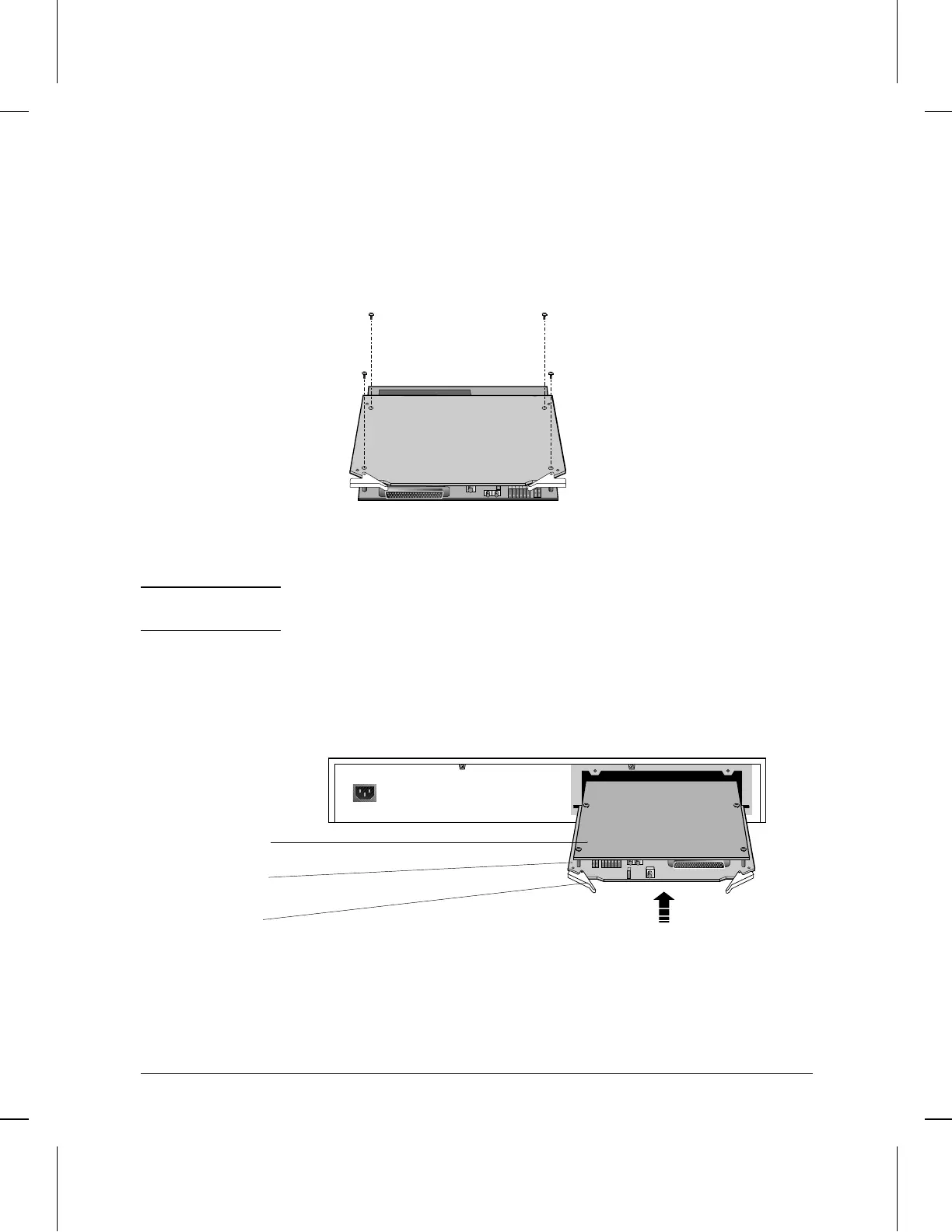

Figure 1-8. Inserting Screws in Router Module
Router module above
SNMP module below
Extractor handles
facing outward
Figure 1-9. Installing Modules in Expansion Slot
Installation
3. Install the Router Module.
1-14
