Installing the Switch
Installation Procedure
Equipment
Cabinet
Note
The screws supplied with the switch are the correct threading for standard
EIA/TIA open 19-inch racks. If you are installing the switch in an equipment
cabinet such as a server cabinet, use the clips and screws that came with the
cabinet in place of the screws that are supplied with the switch.
Complete the following step 1 to attach brackets to the switch. Then, plan
which four holes you will be using in the cabinet and install all four clips. Then
proceed to step 2 to install the switch in the cabinet.

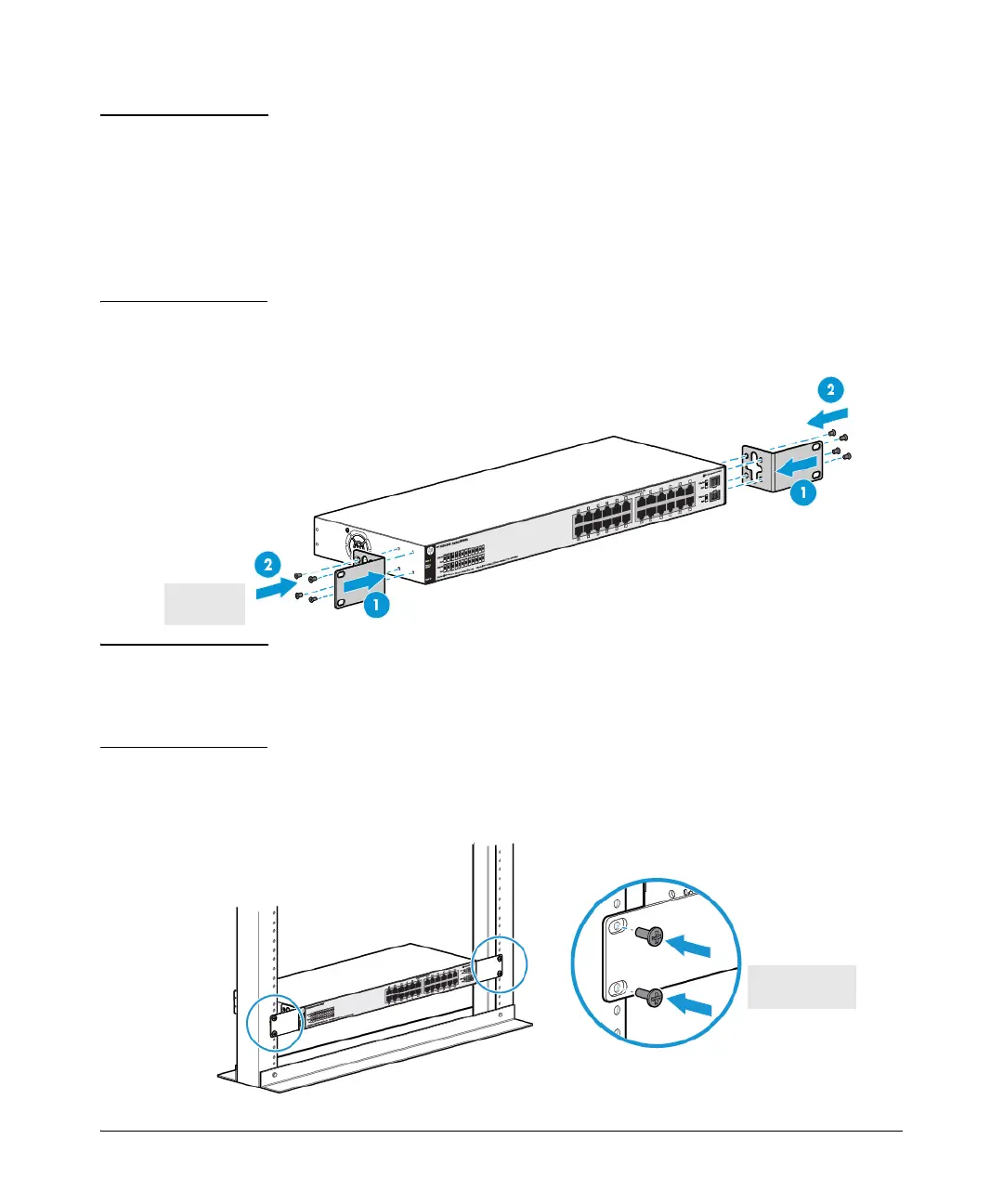

1. Use a #1 Phillips (cross-head) screwdriver and attach the mounting
brackets to the switch with the included 8-mm M4 screws.
Note The mounting brackets have multiple mounting holes and can be rotated
allowing for a wide variety of mounting options. These include mounting the
switch so its front face is flush with the face of the rack, as shown in the
illustration.
2. Hold the switch with attached brackets in the rack and move it vertically
until rack holes line up with the bracket holes, then insert and tighten the
four 12-24 screws holding the brackets to the rack.
