HP L2335 User Manual

4–4 www.hp.com User’s Guide
Operating the Monitor
Adjusting Monitor Settings

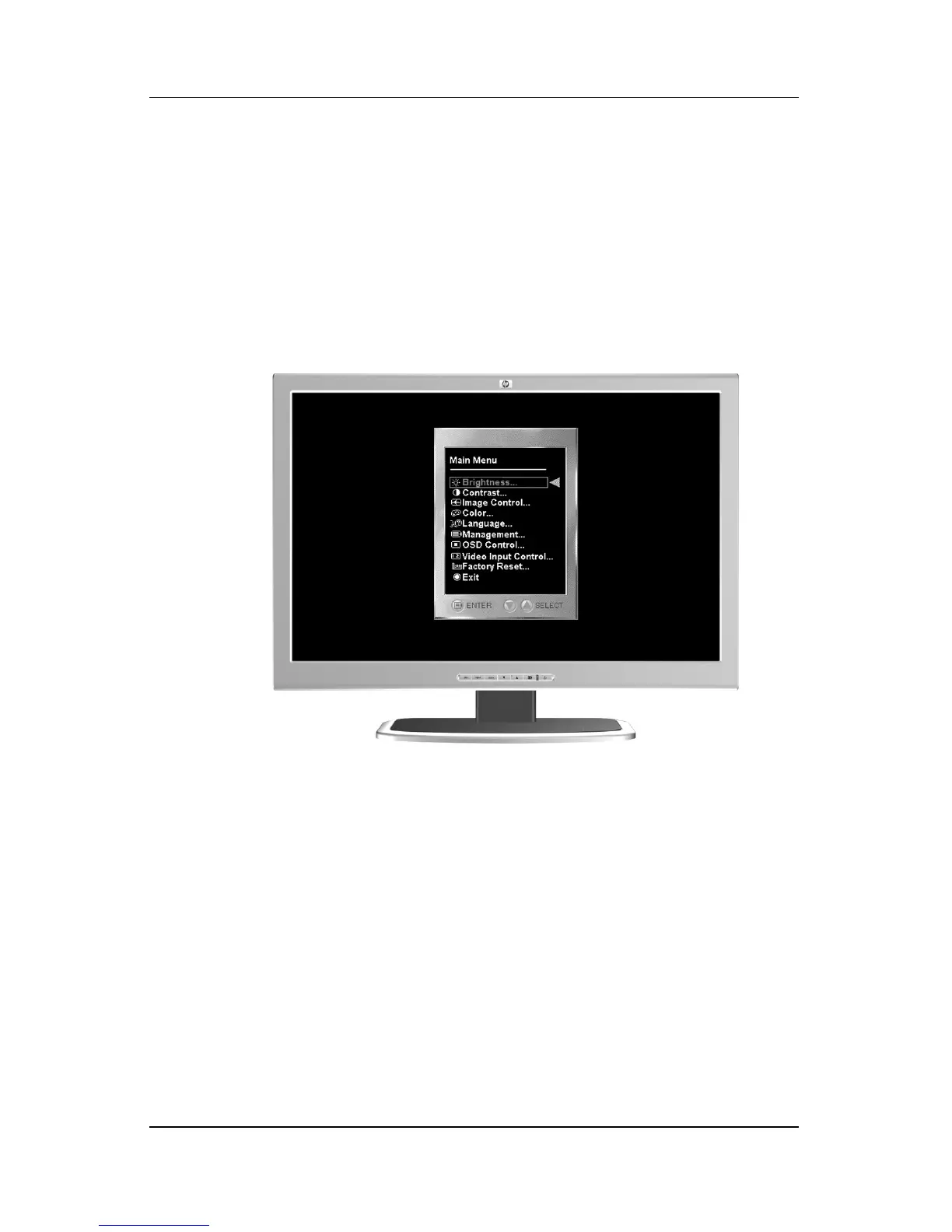

Press the Menu button on the front panel of the monitor to view
the On Screen Display (OSD) Menu. The Main Menu window
pops up and you can make adjustments to your monitor’s various
features. Use the left, right, up, and down arrow keys to make
your adjustments within the menu.
Using the On-Screen Display
The adjustments for screen settings are located in the on-screen
display (OSD). Press the Menu button on the monitor's front
panel to view the OSD menu in one of six available languages.
The following table shows the menus and their functions at each
level:

HP L2335 Specifications

General

3D	No
Pixel pitch	0.258 x 0.258 mm
Aspect ratio	16:9
Response time	16 ms
Display diagonal	23 \
Display resolution	1920 x 1200 pixels
Contrast ratio (dynamic)	-
Display number of colors	16.78 million colors
Viewing angle, horizontal	170 °
Digital vertical frequency	48 - 85 Hz
Digital horizontal frequency	30 - 94 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1152 x 870, 1920 x 1200 (WUXGA)
DVI-D ports quantity	0
LED indicators	Power
Tilt angle range	-5 - 25 °
Height adjustment	90 mm
Cable lock slot type	Kensington
On Screen Display (OSD)	Yes
Panel mounting interface	100 x 100 mm
AC input frequency	50 - 60 Hz
Power consumption (typical)	100 W
Power requirements	90 - 265V
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	ACA, CSA, CE, CCIB/CCEE, CISPR, FCC, TUV/GS, VDT, NOM, MIC, MPR-II, PC2001, PC99, BSMI, TCO, TUV-Ergo, UL, VCCI
Country of origin	China
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (without stand)	85 mm
Width (without stand)	545 mm
Height (without stand)	370 mm
Weight (without stand)	10100 g
