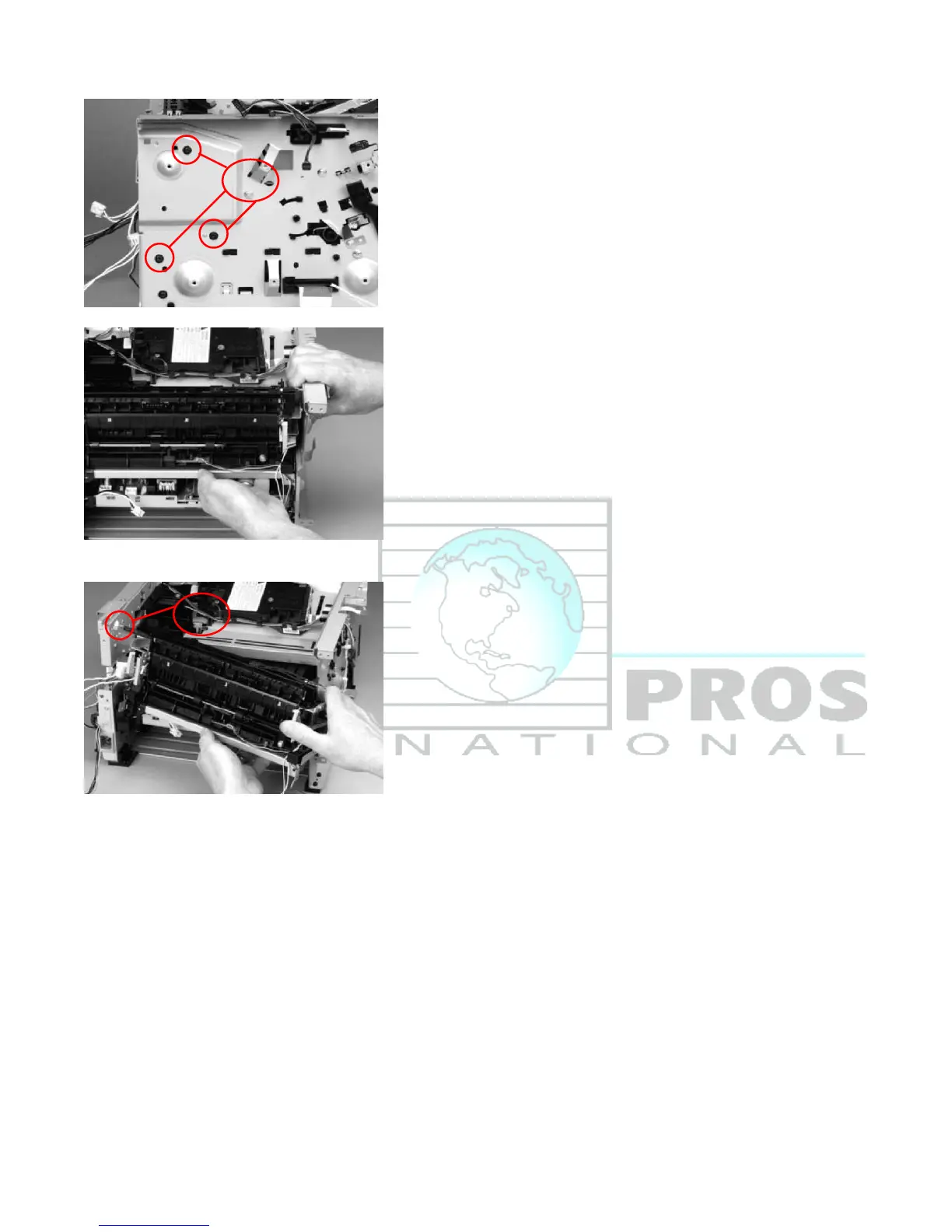

i.) Remove three screws (callout 41) from the left rear of printer.
j.) From the back, pull on the upper right side of printer to spread chassis to release fuser form the frame.
k.) Pull the fuser out of the printer at an angle so that the delivery roller shaft clears the hole (callout 42) in the
chassis. Carefully remove the wire harness from the guide in the lower left corner of the fuser.
l.) To reinstall fuser reverse all steps.
