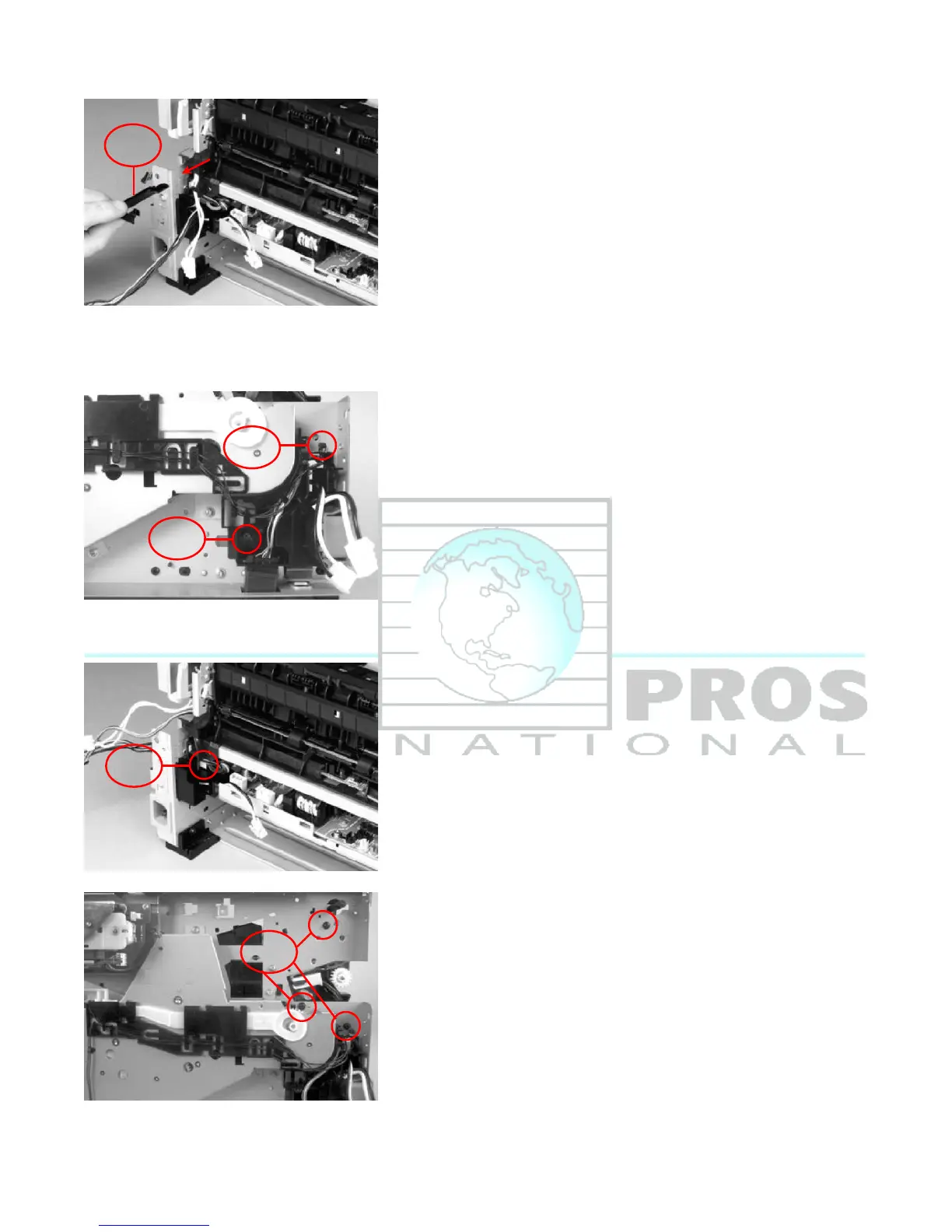

e.) Pull wire harness holder (callout 36) straight back to remove it, then remove the wire harness from guide.
f.) Remove one screw (callout 37) and release one clip (callout 38) on the wire guide for optional tray three. It
is not necessary to remove the tray three connector or wire harness guide. You do need to release the guide so
that the tray three connector wire harness is loose enough to be removed from guide on the fuser later in this
procedure.
g.) Disconnect one connector (callout 39) and then remove the wire harness from the guide. Before you
proceed to the next step, make sure that all of the wire harnesses that you disconnected in previous steps have
been released from any wire harness guides and holders.
h.) Remove three screws (callout 40) from the right rear of printer.
