Removal and Replacement
internal Assemblies
Transfer Roller and Guide
a
The Transfer Roller is located inside the top door, under the toner
cartridge. The Printer Cover does not need to be removed to
replace the Transfer Roller.
●
CAUTION
Do not touch or otherwise contaminate the
surface of the Transfer Roller. Skin oils and
other contaminants affect its electrical
characteristics, resulting in poor image transfer.
1. Open the top door and remove the toner cartridge.
2. Using a flat-blade screwdriver, gently pry under the left end to
lift the roller shaft upward (Figure 6-25, callout 1).

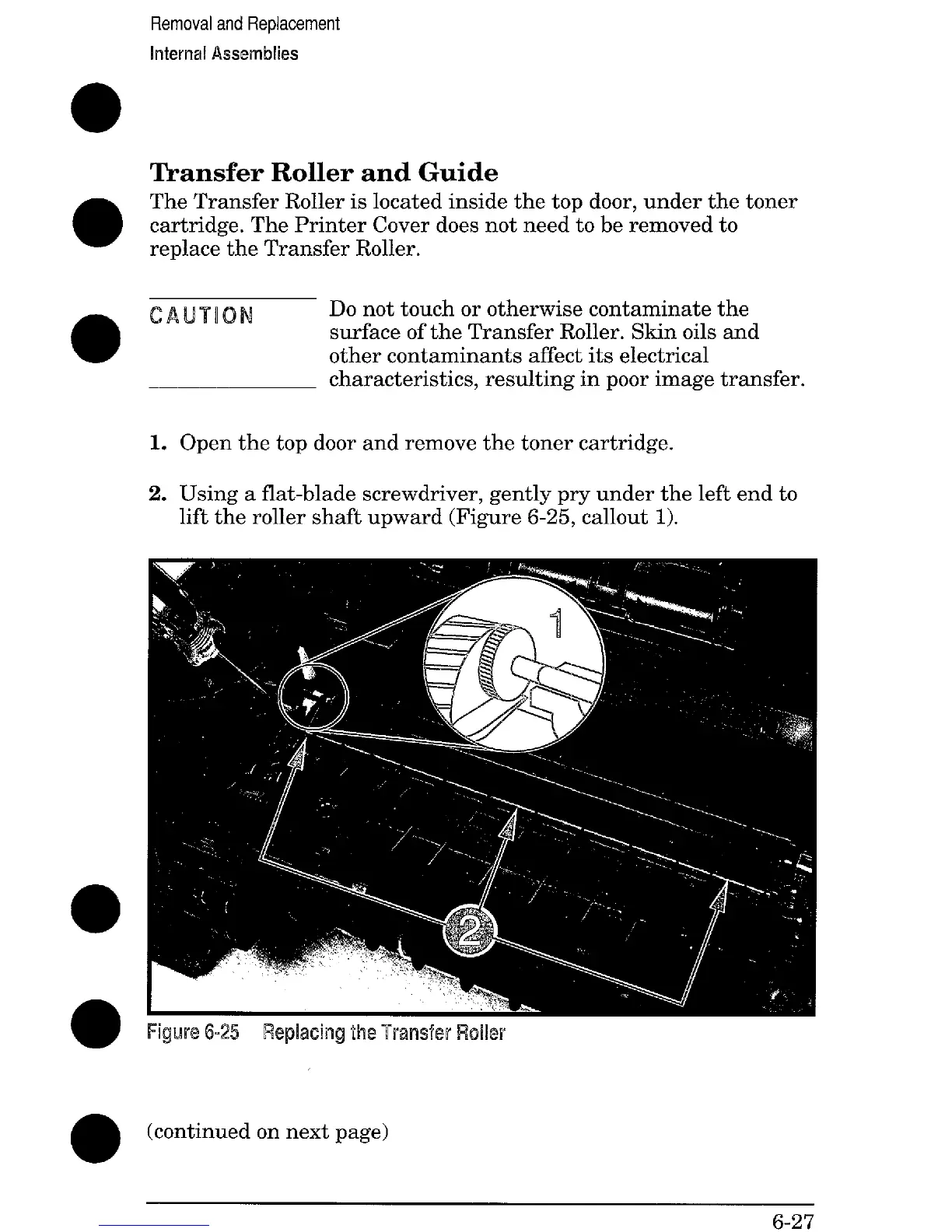

Figure 6-25 Replacing Me Transfer Roller
●
(continued on next page)
