Removal and Replacement
Rear Assemblies
Fusing Assembly Components
The following procedure describes the steps for disassembling the
Fusing Assembly (after it has been removed from the printer).
Please perform the steps in the sequence listed.
Pressure Plate
CAUTION
Do not remove or disturb the (2) stationary
compression springs located at either end on top
of the pressure plate. Dislocation of these
springs can cause poor fusing.
1.
2.

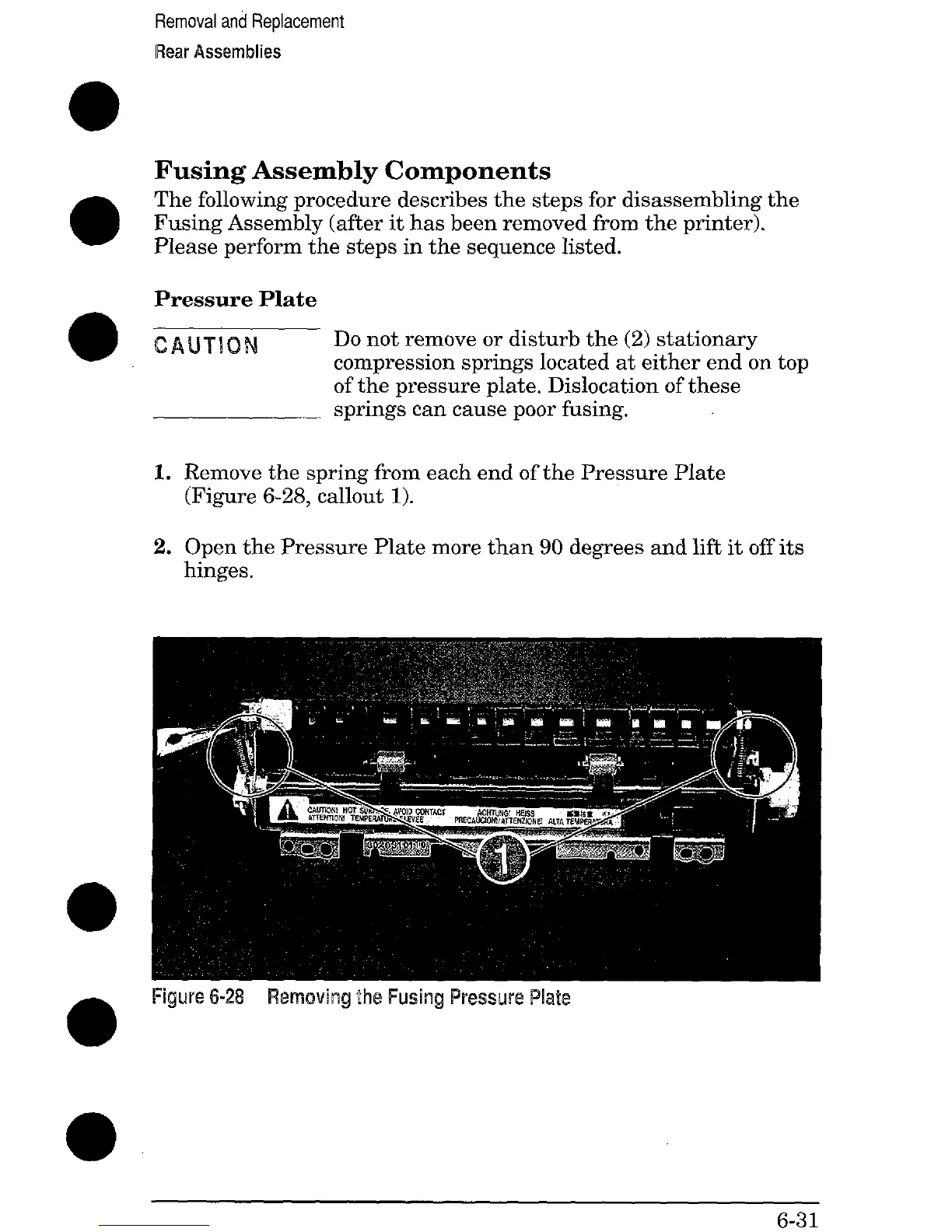

Remove the spring from each end of the Pressure Plate
(Figure 6-28, call&t 1).
Open the Pressure Plate more than 90 degrees and lift it off its
6-31
