Removal and Replacement
Rear Assemblies
Upper Fusing Assembly
(Teflon Sleeve and Heater Element)
1.
2.
3.
4.
5.
Unsnap and open the cable clip shown in Figure 6-29, callout 1.
Remove the wires from the open cable clip and gently squeeze
the connector to unplug.
Unplug the second connector shown in Figure 6-29, callout 2.
Squeeze the tab on the ceramic heater element connector and
pull the connector free (Figure 6-29, callout 3).
Grip both ends of the Upper Fusing Assembly, lifting it out.

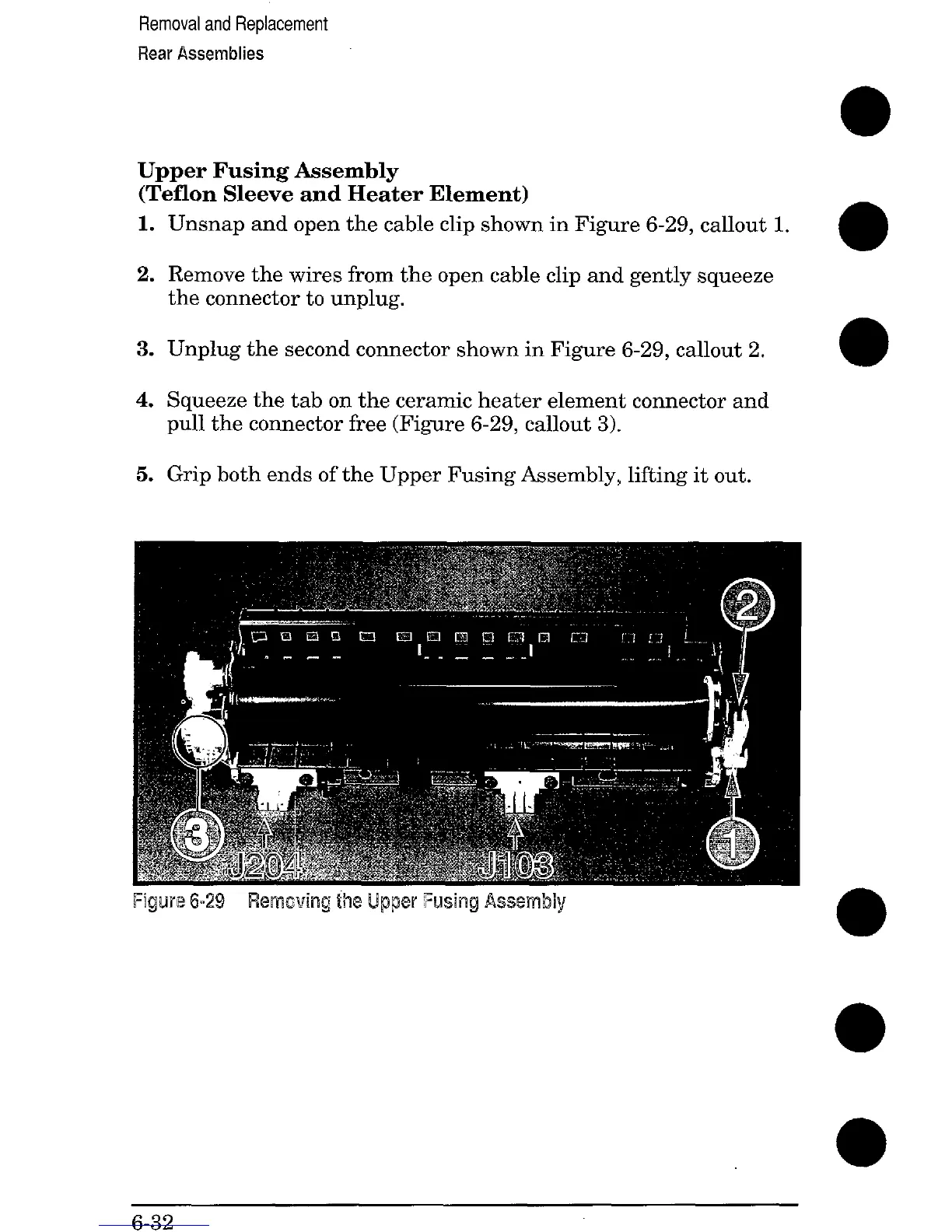

Figw’e6=29 Rwnoving‘Me
upperwingAssembly
6-32
